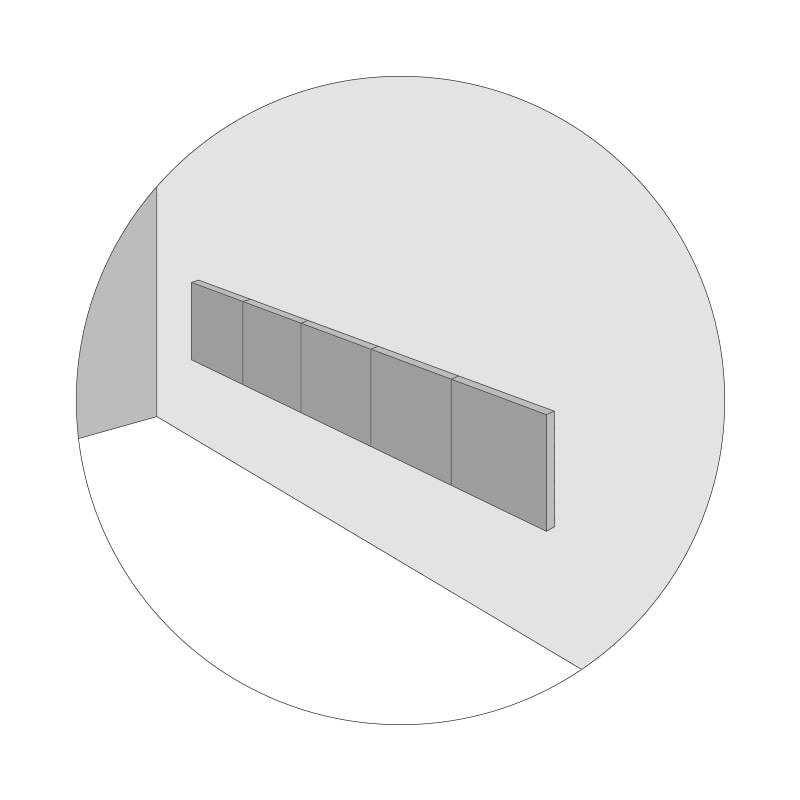

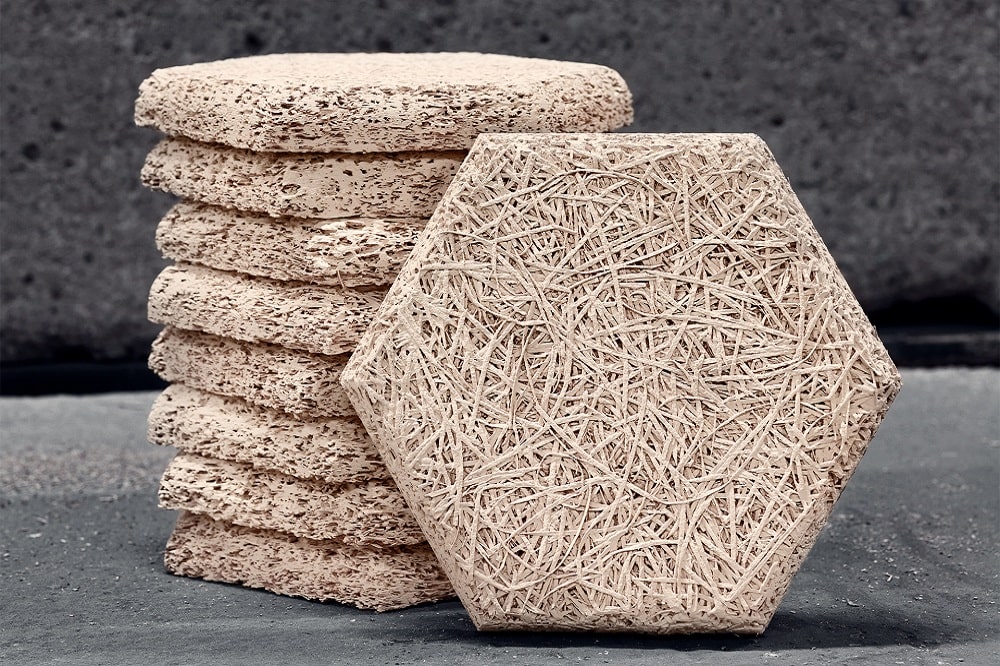

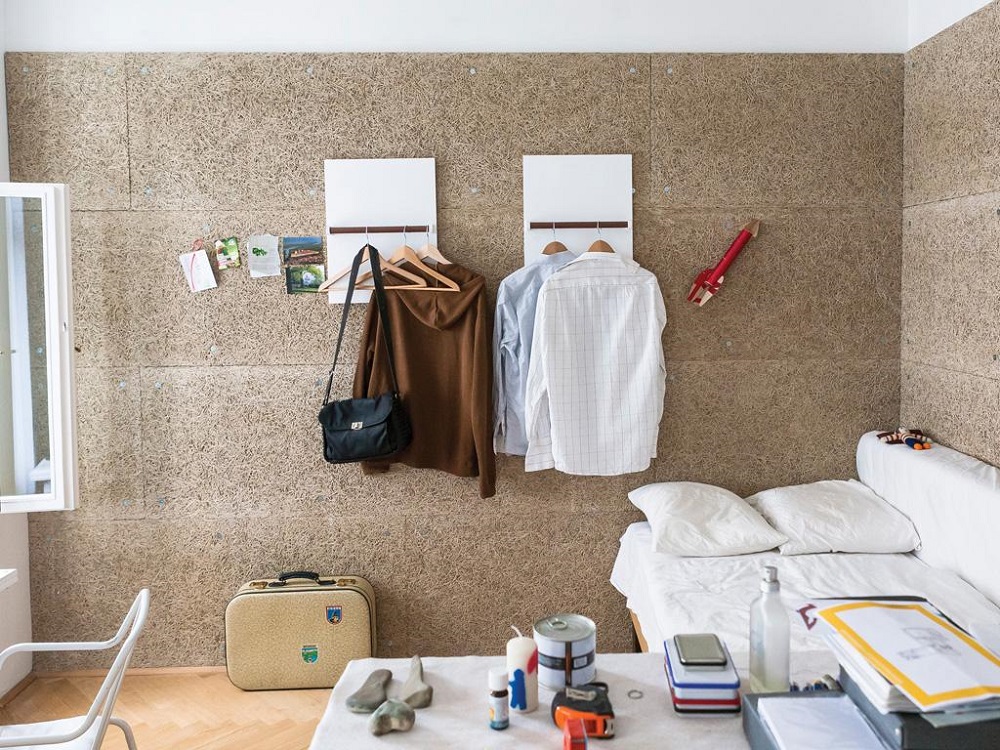

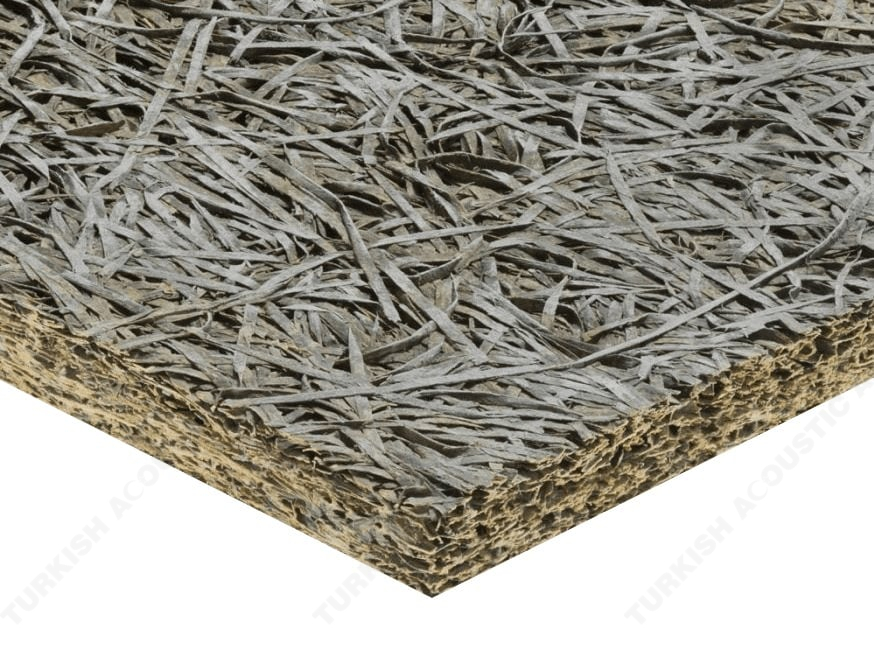

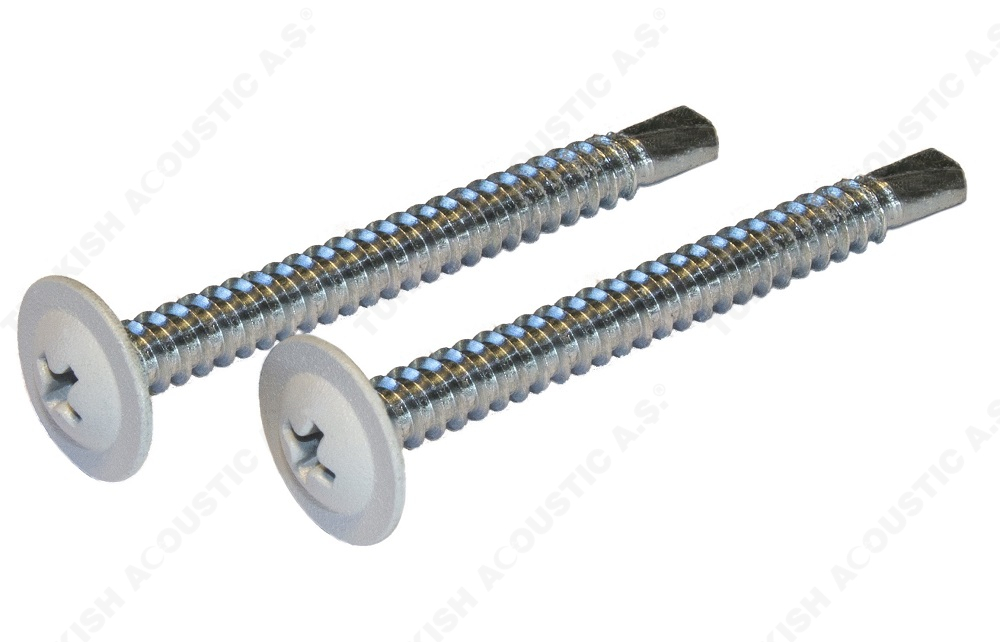

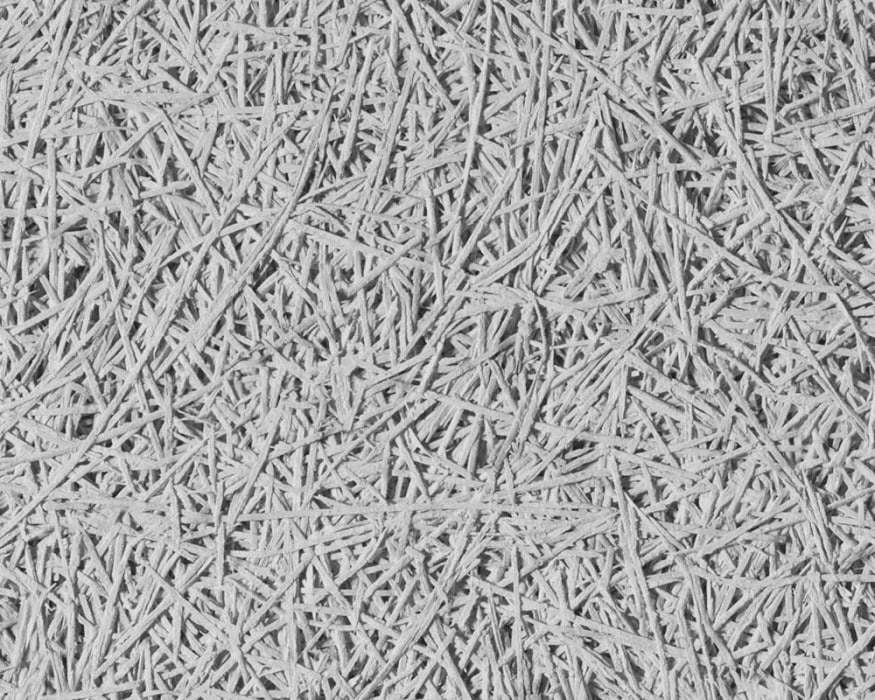

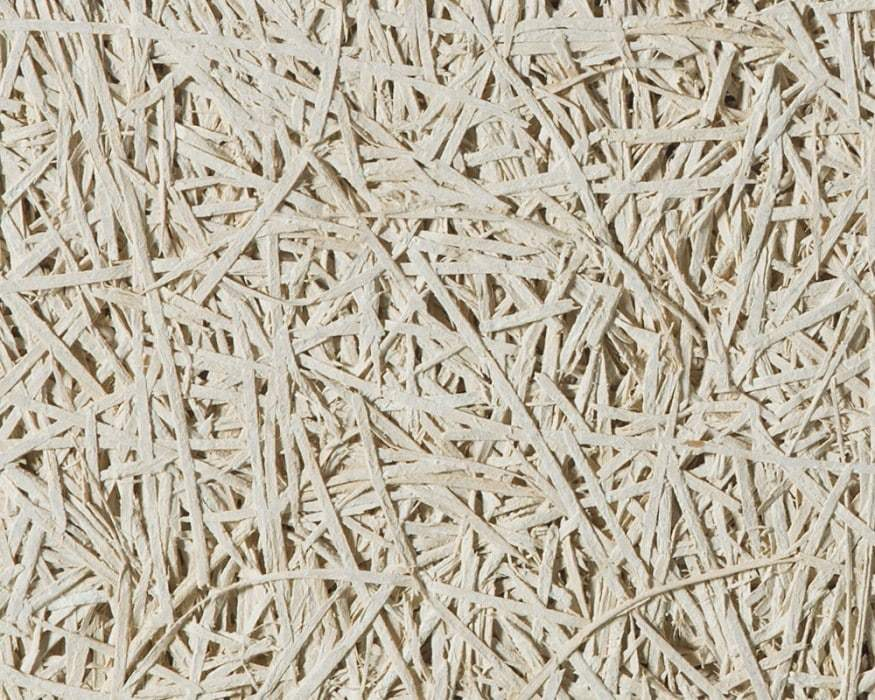

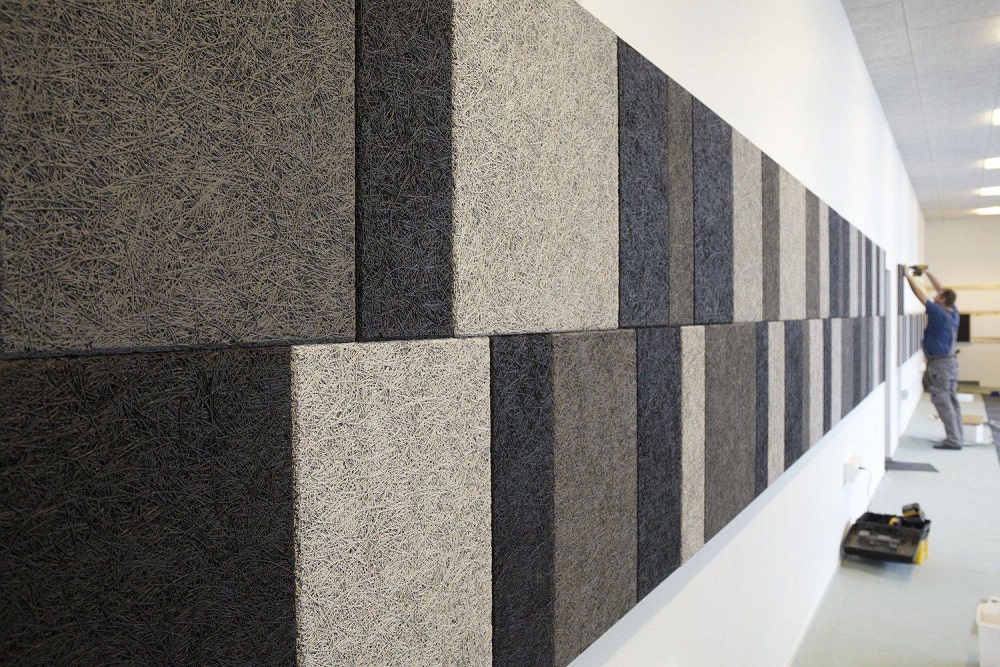

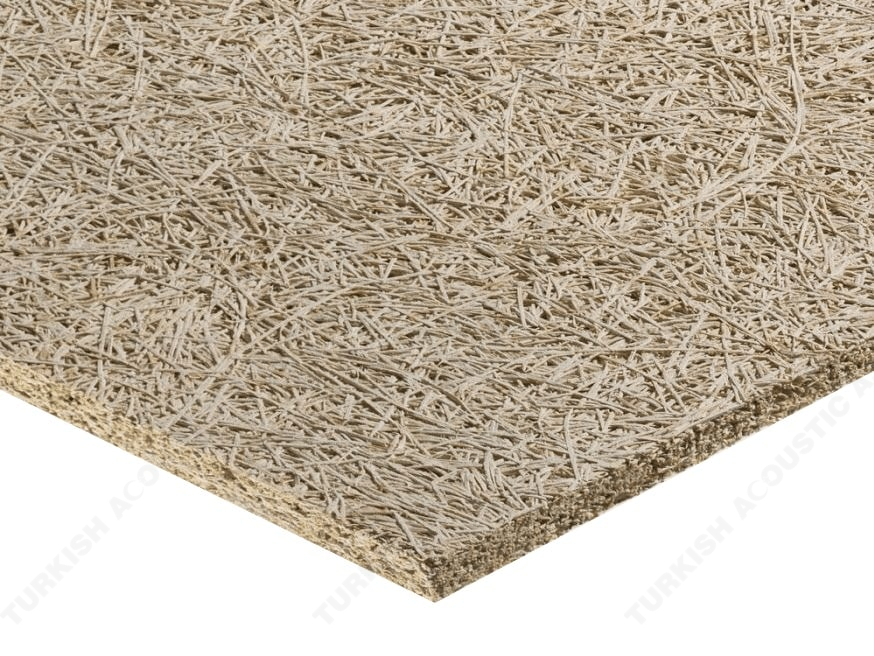

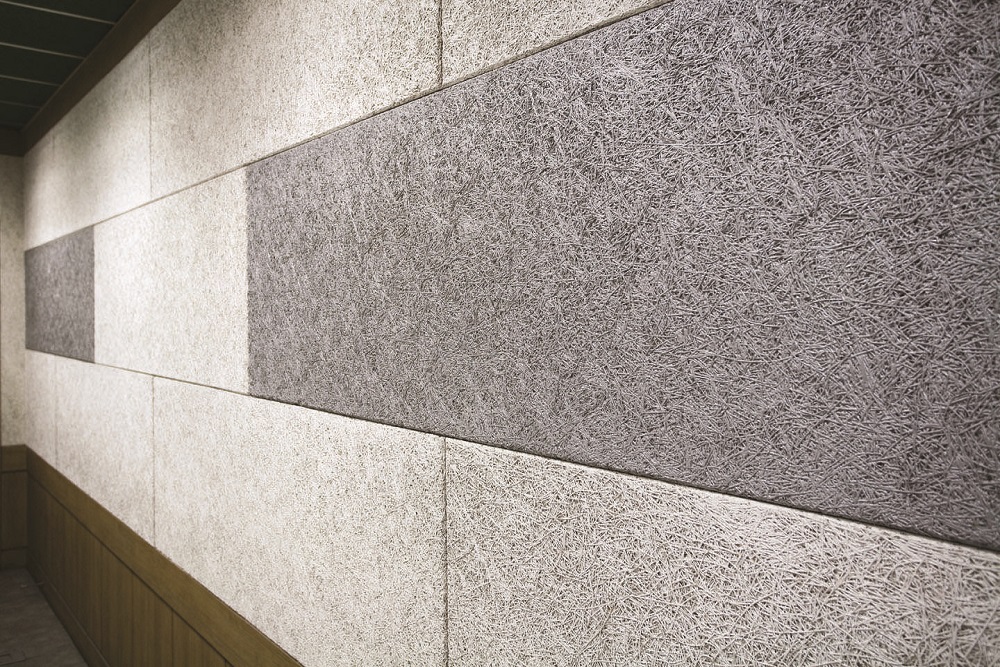

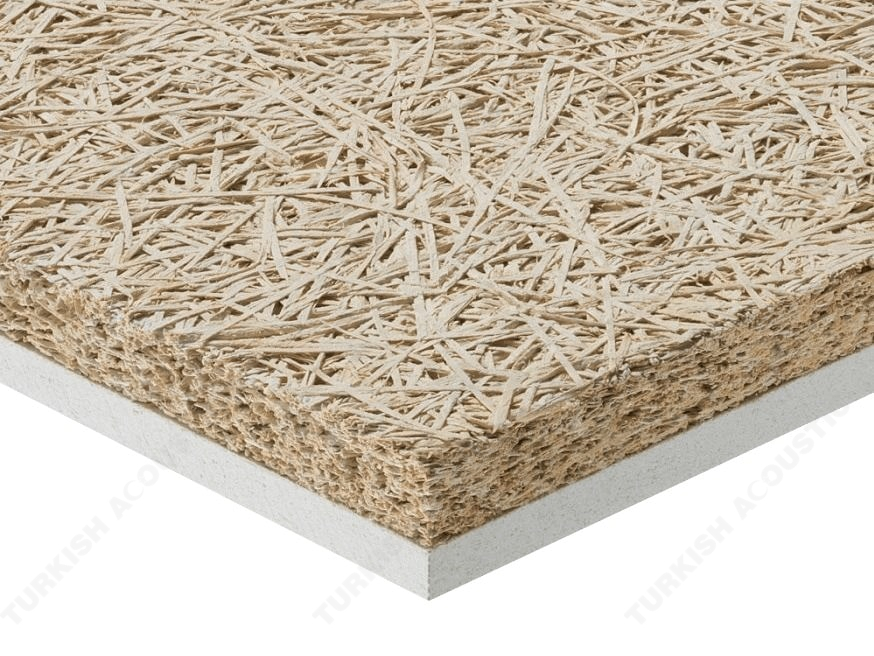

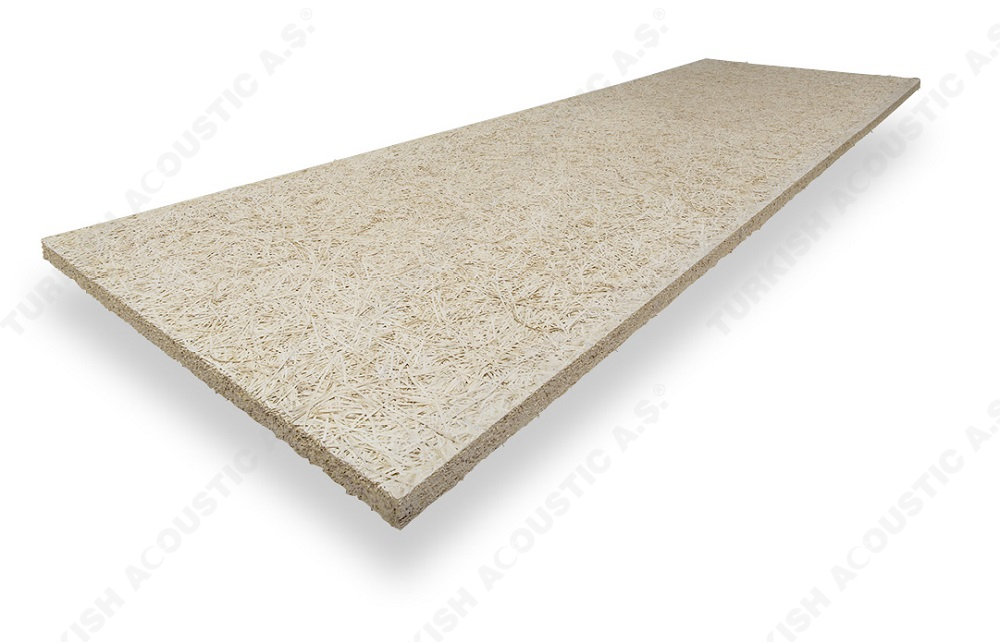

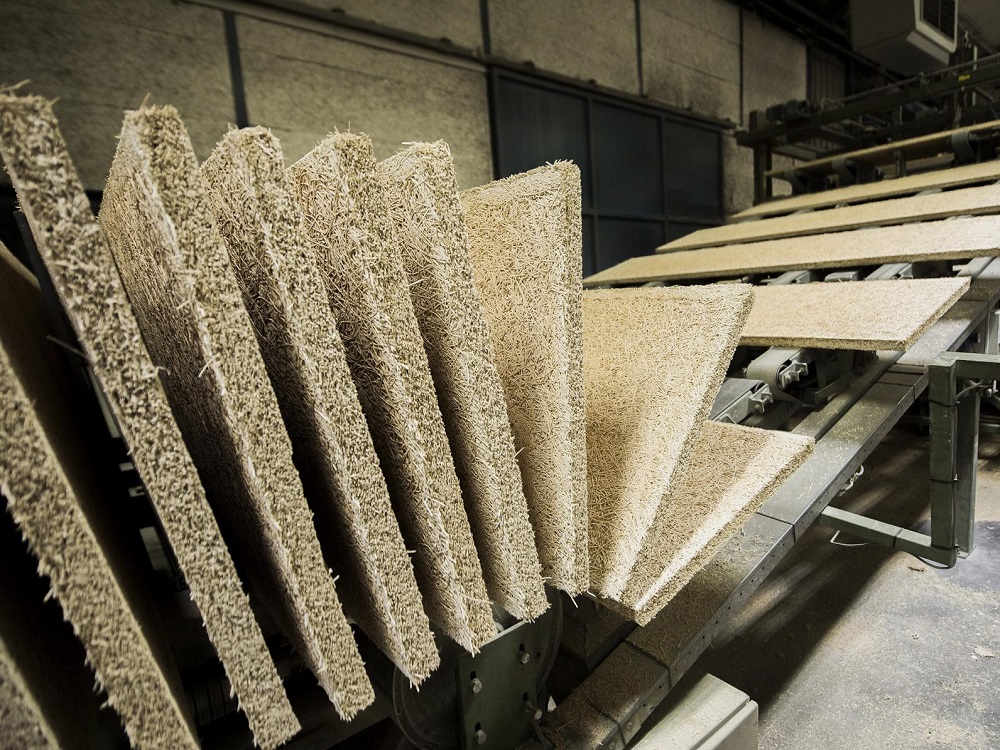

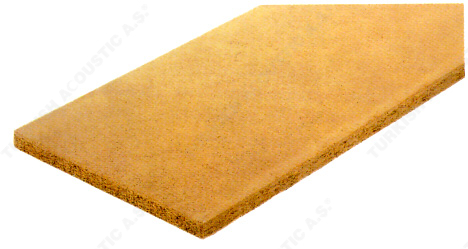

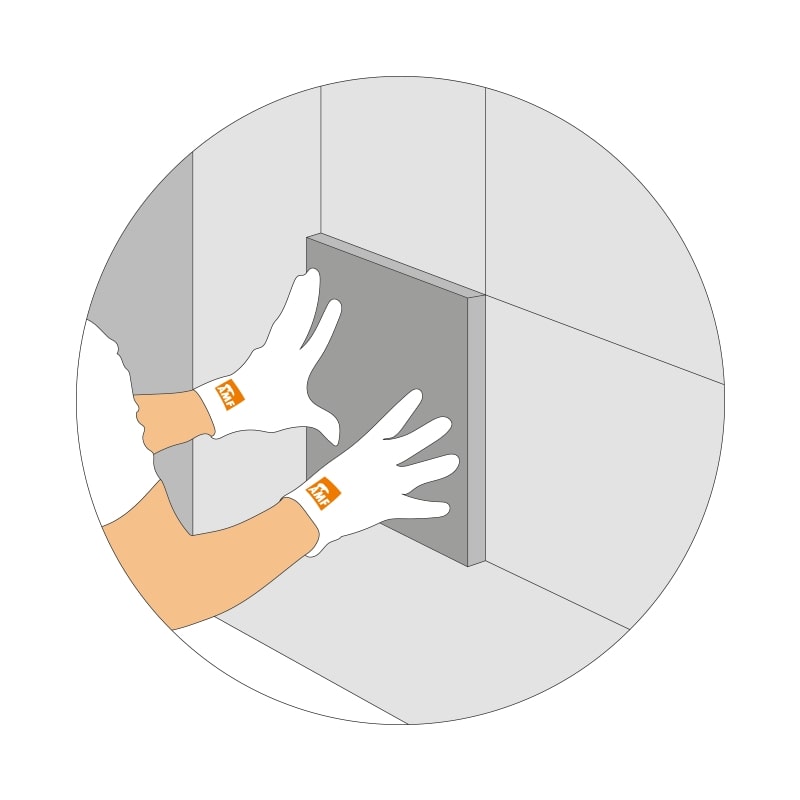

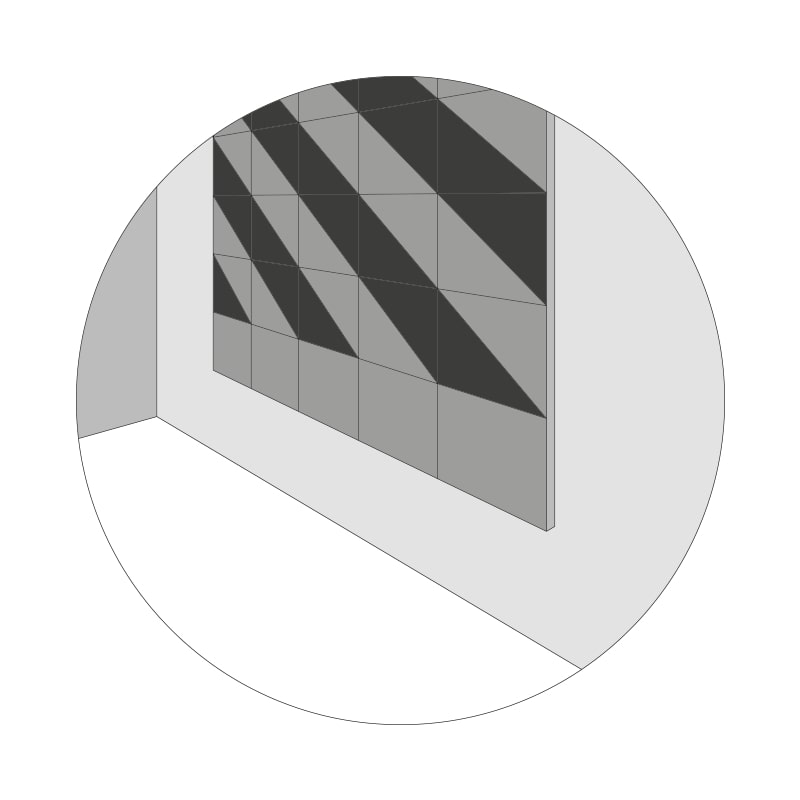

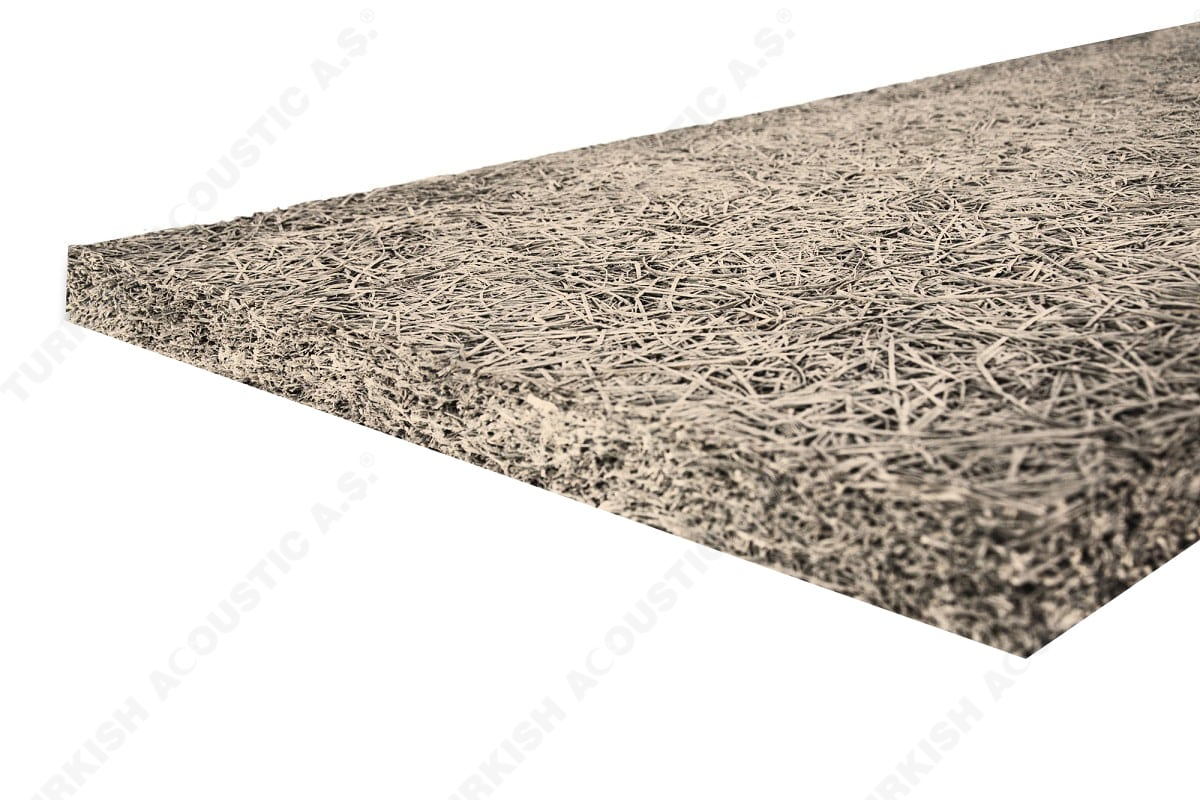

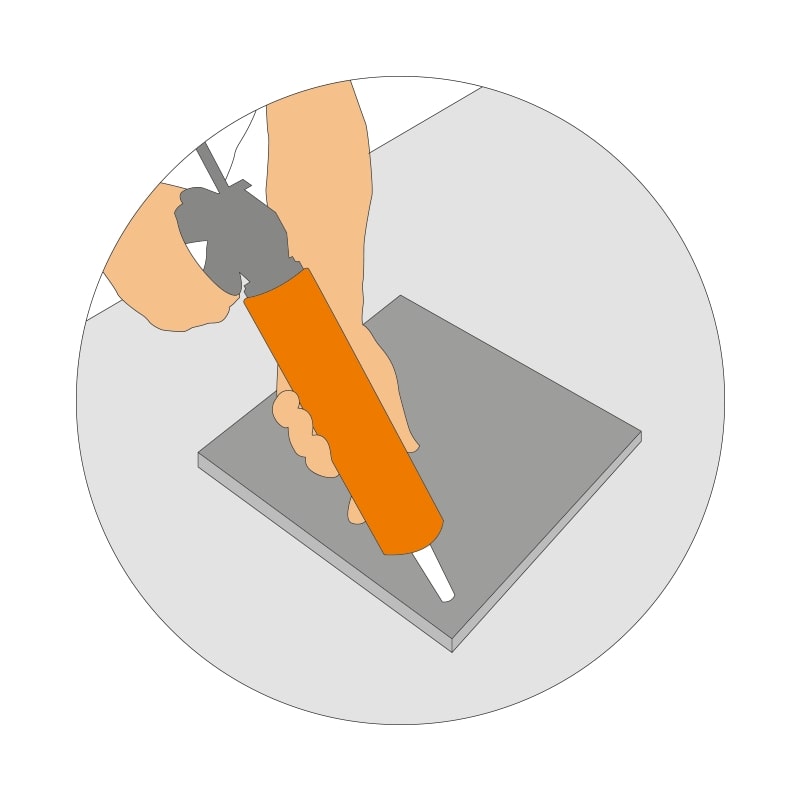

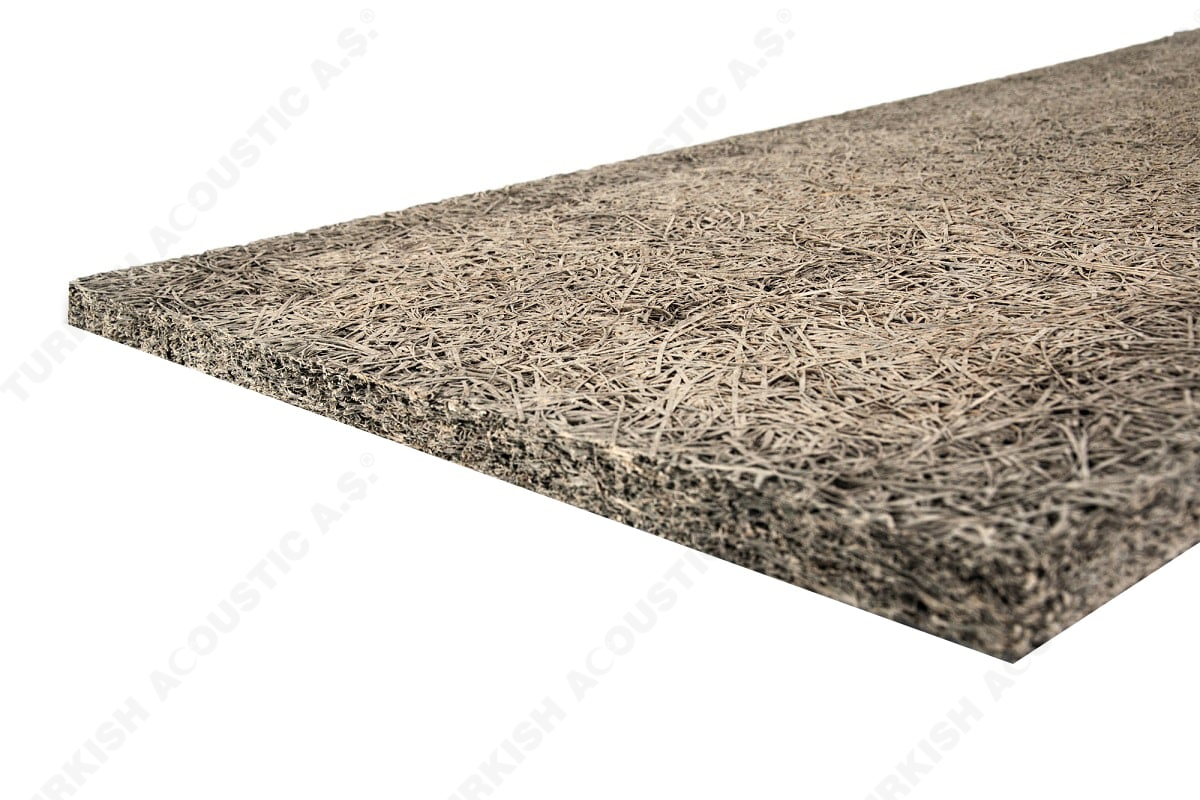

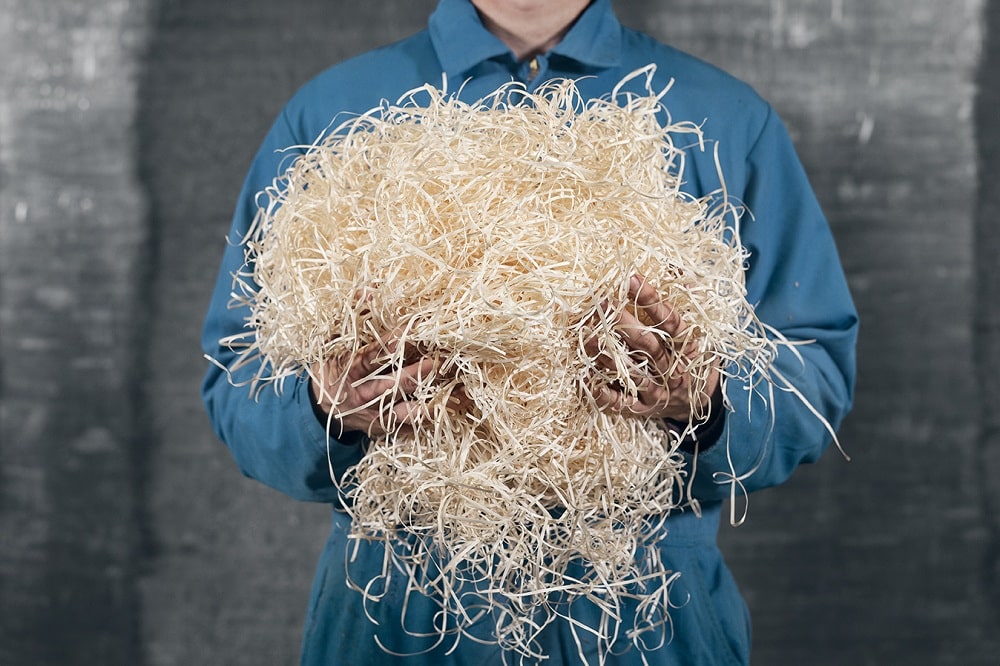

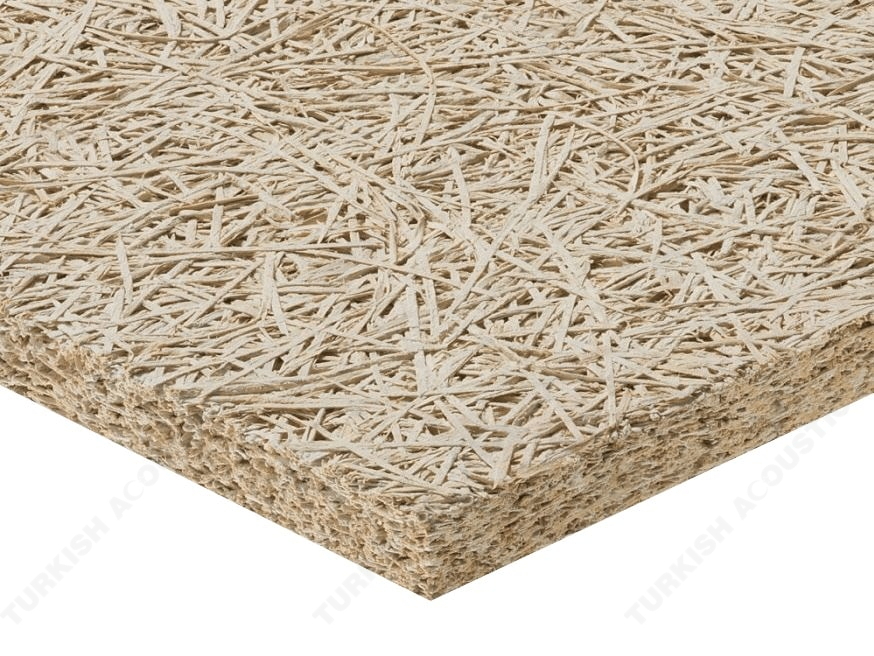

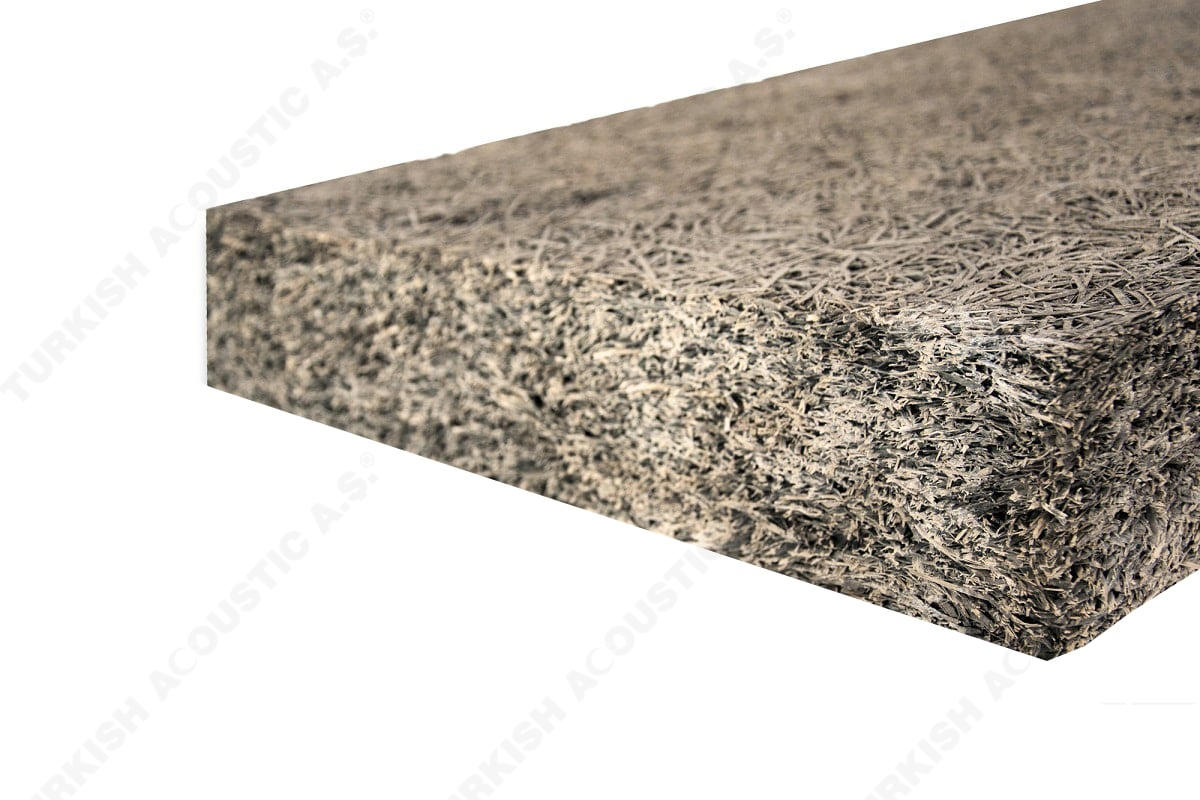

Heraklith:  Wood material is obtained by mixing chipboards with cementitious components. It can also be called acoustic panel coating material, which is laminated with different acoustic sound insulation products. Tektalan A2 E21, Heraklith - Wood Wool insulation inspired by nature. The heraklith material used between the sound insulation material is made of poplar wood. Wood wools and cement are mixed, poured into molds and pressed. The heraklith material, which provides a high level of sound insulation, is combined with wood shavings, rock wool, cement or polystyrene foam and the desired efficiency in insulation is provided. Acoustic wool plates are prepared in accordance with the project so that a gap is left between the wall and the plate and 40x40x2mm metal profile carcass is applied to the museum. Stone wool plates with a density of 50-80 kg / m3 and 3 cm thickness covered with glass fiber will be mounted on the back of the plates. Mounting materials suitable for the properties of the material are used in the assembly. Wood wool acoustic plates should be prepared in accordance with the project to be made and covered in accordance with the wall surfaces and the properties of the material, with no gaps between them to provide adequate sound insulation, loading in the construction area, vertical transport, unloading and all kinds of material losses, workmanship tools and equipment. You can find the price of 1 m² heraklith wood material from our homepage, including the expenses of the contractor's profit and general expenses. Size: The price per m2 is calculated over the area where wood wool acoustic plate is laid. You can protect the significant heat loss caused by the facade with the robust facade insulation systems of Heraclith. In addition, you can ensure that the walls are resistant to impacts by applying thick plaster, which is only possible by the heraklith technology.

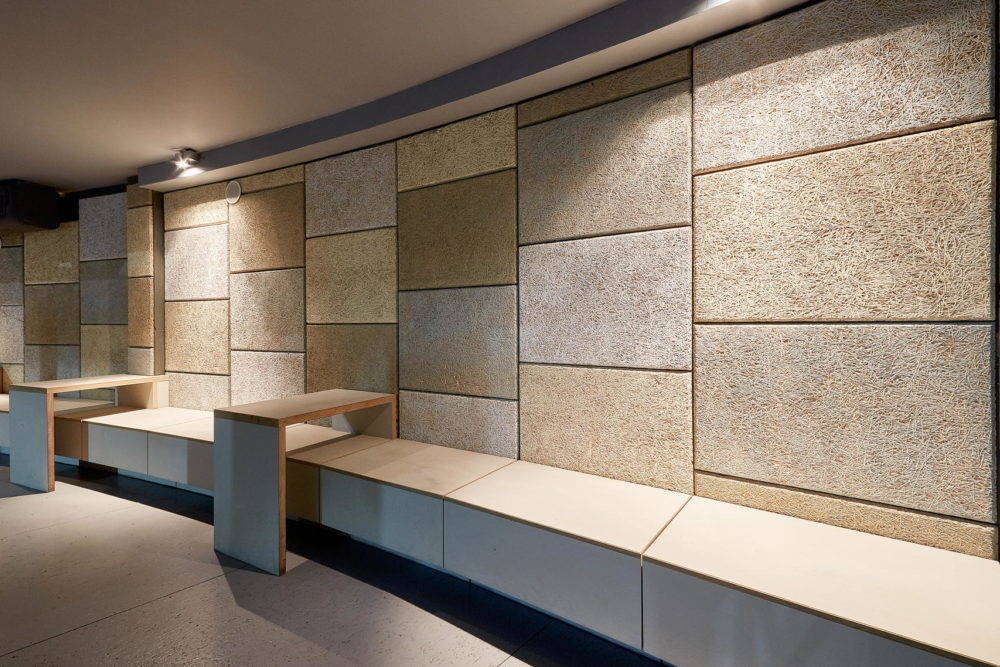

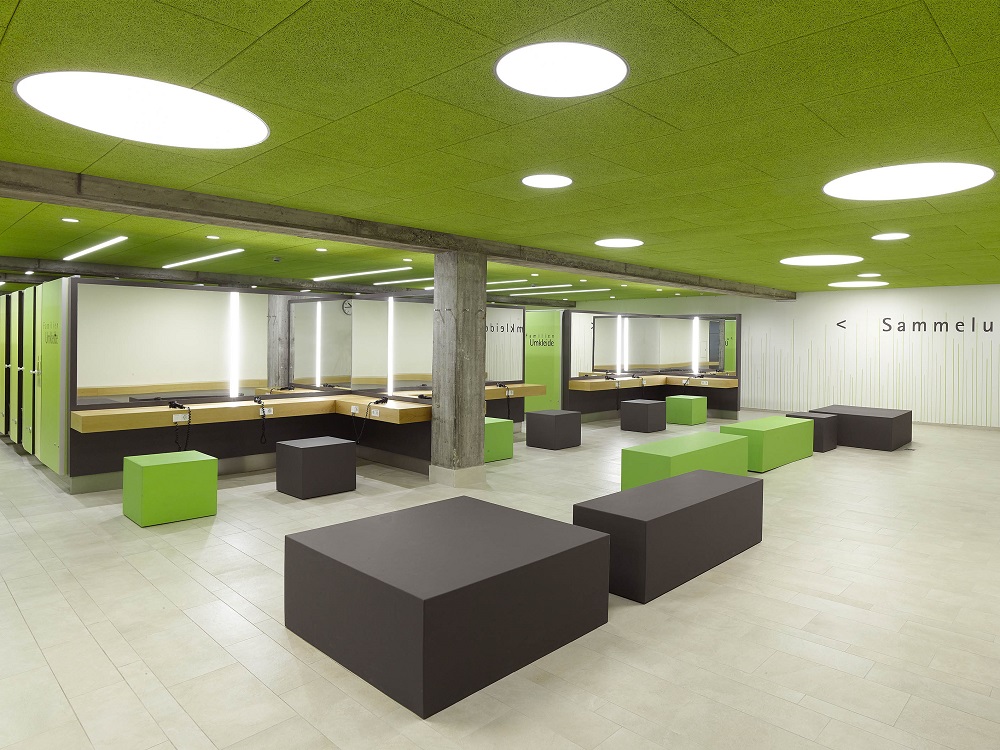

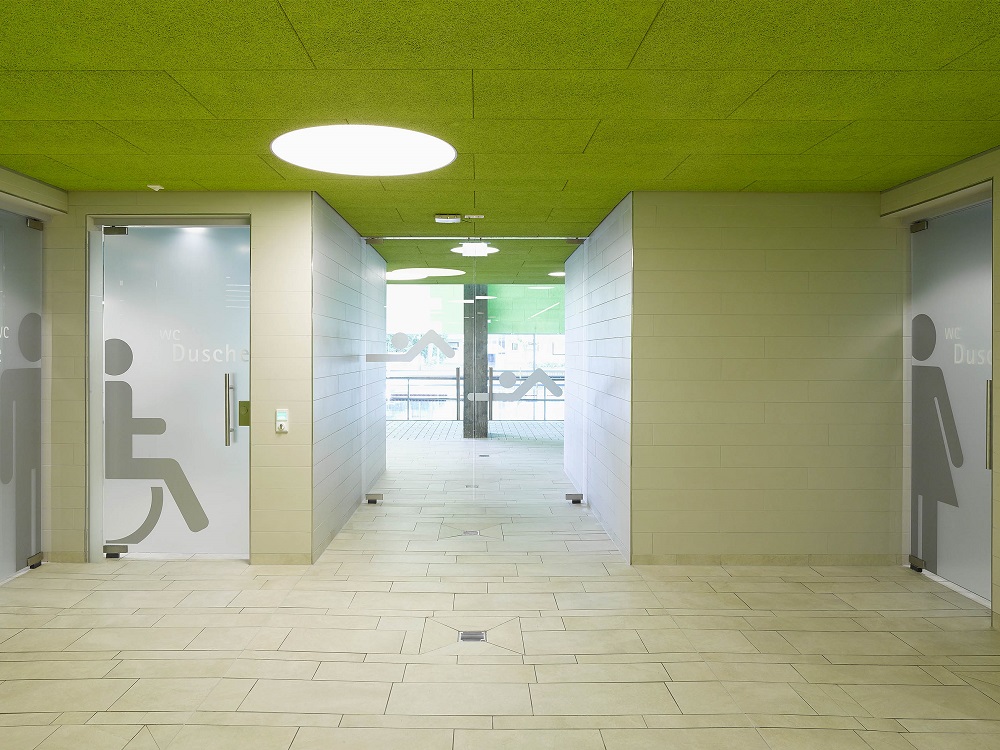

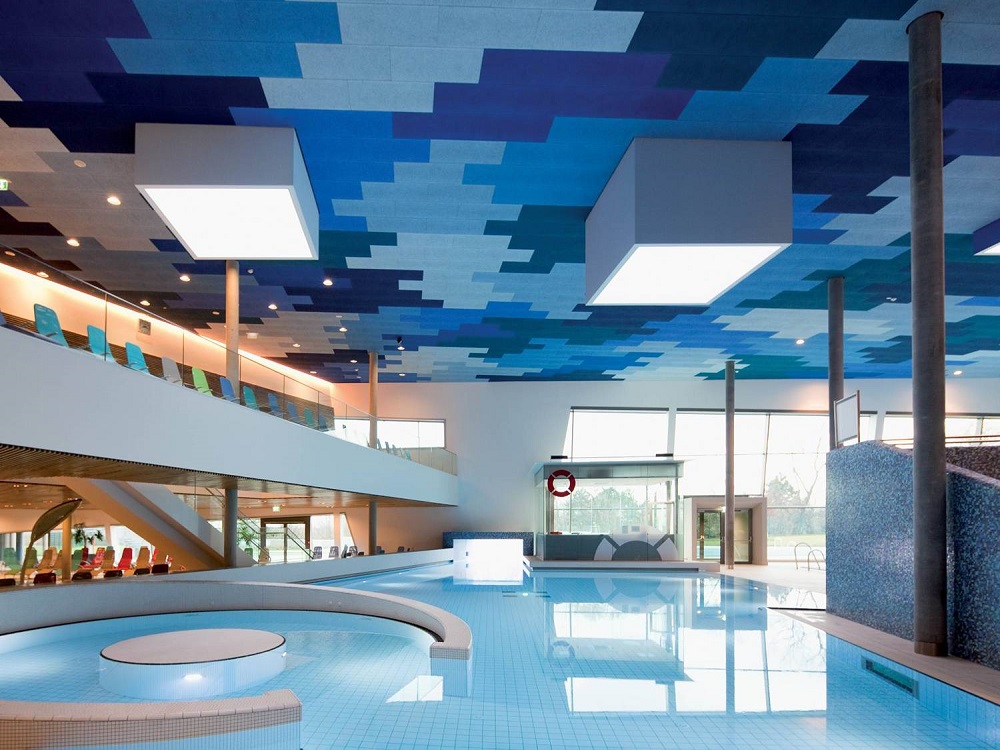

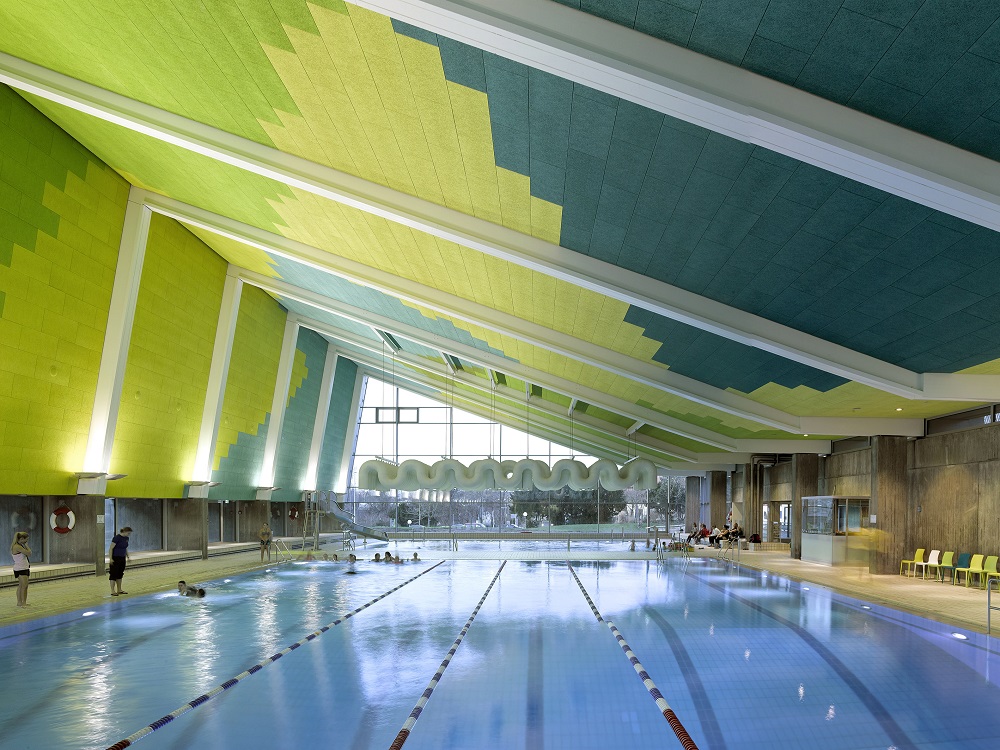

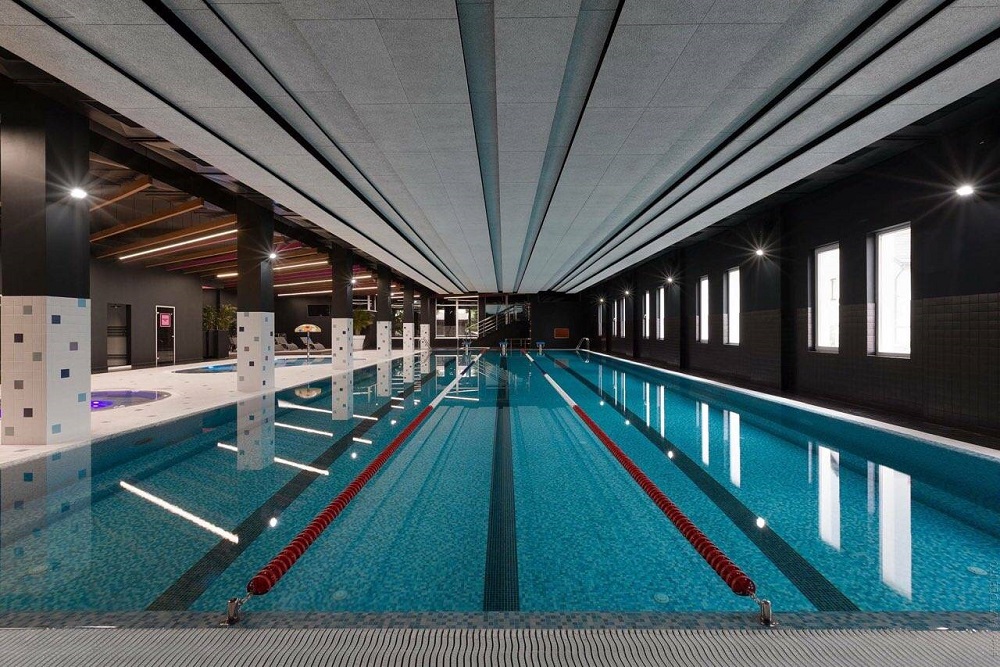

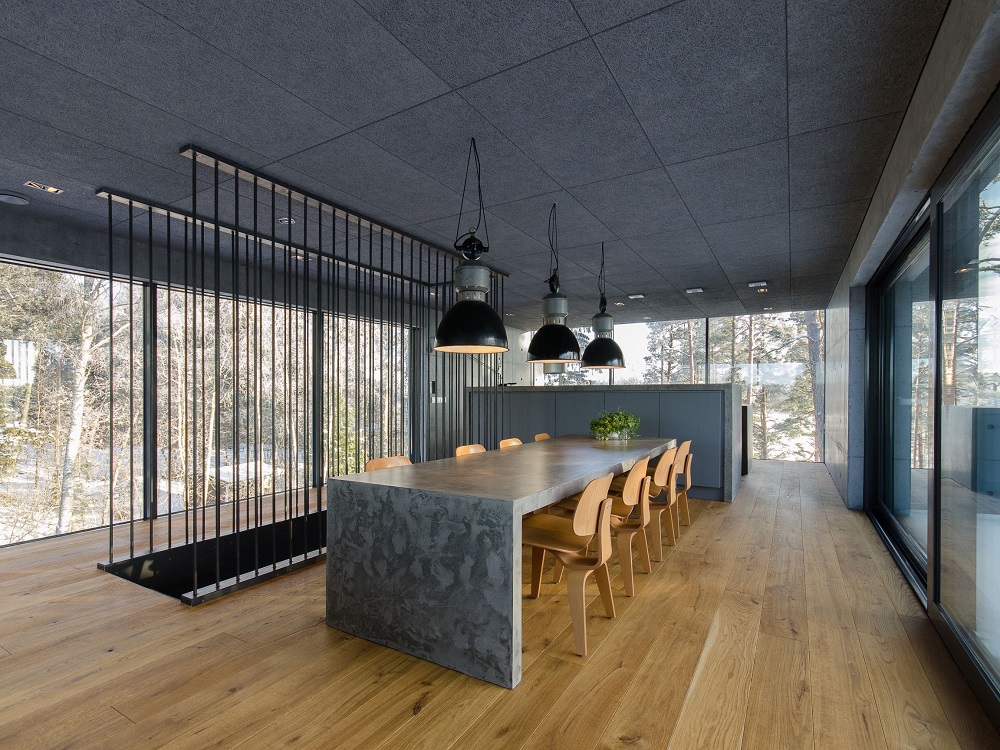

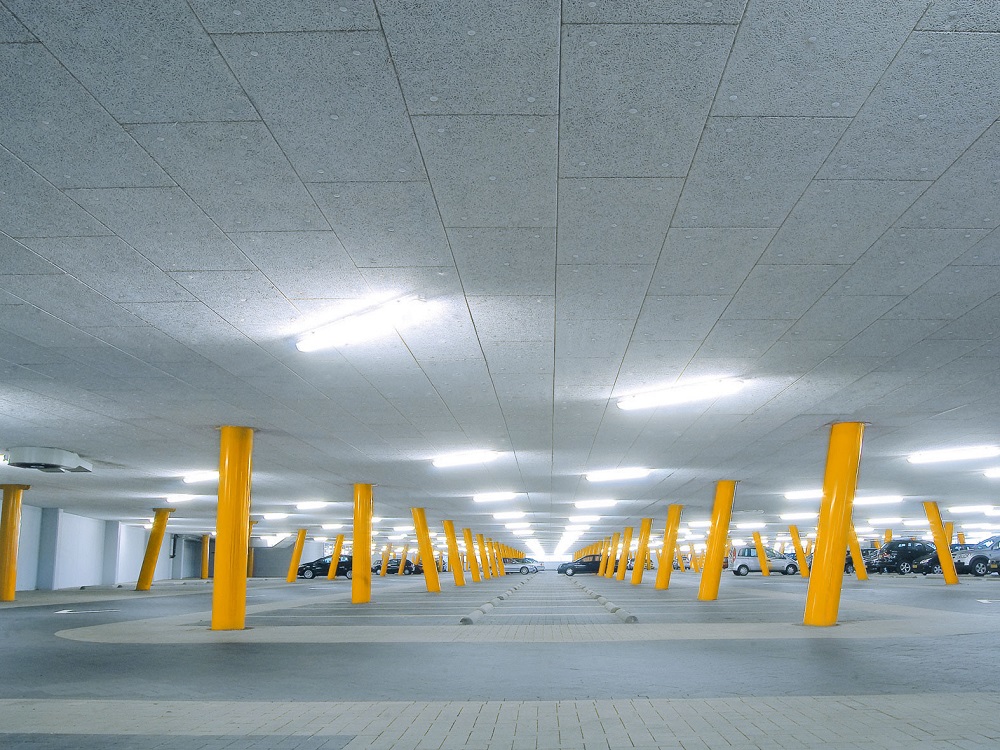

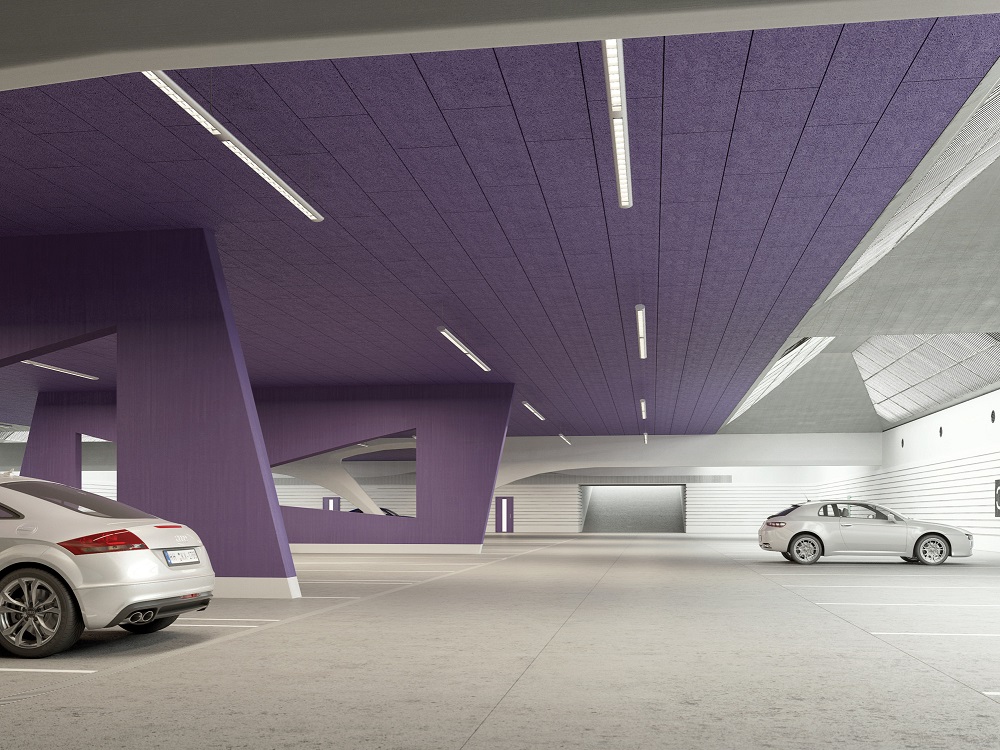

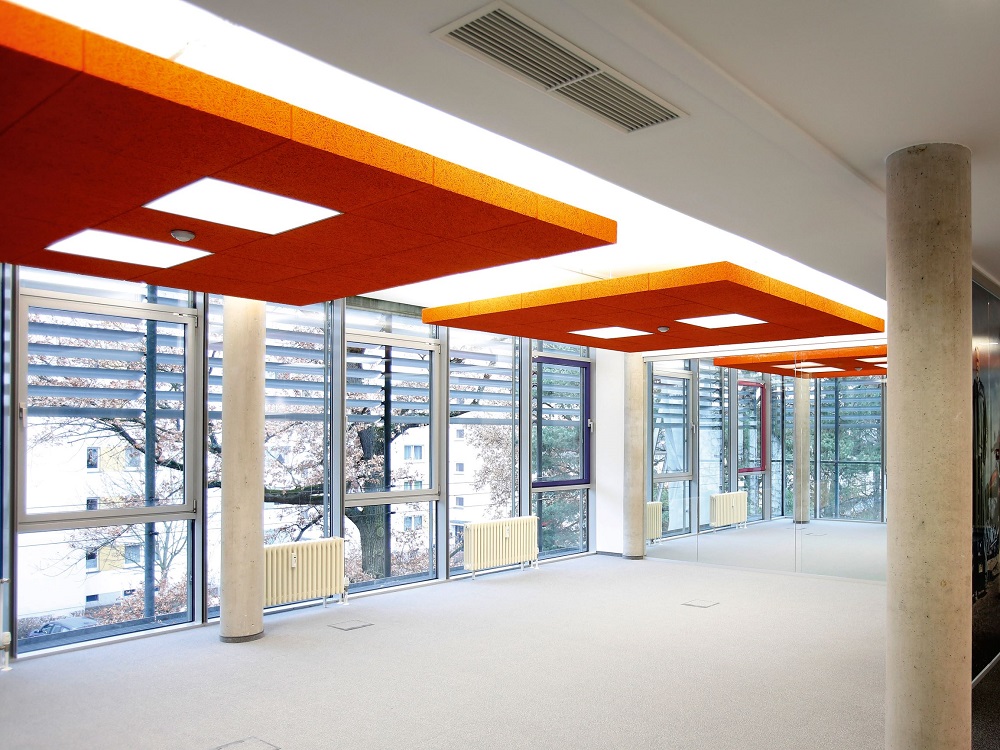

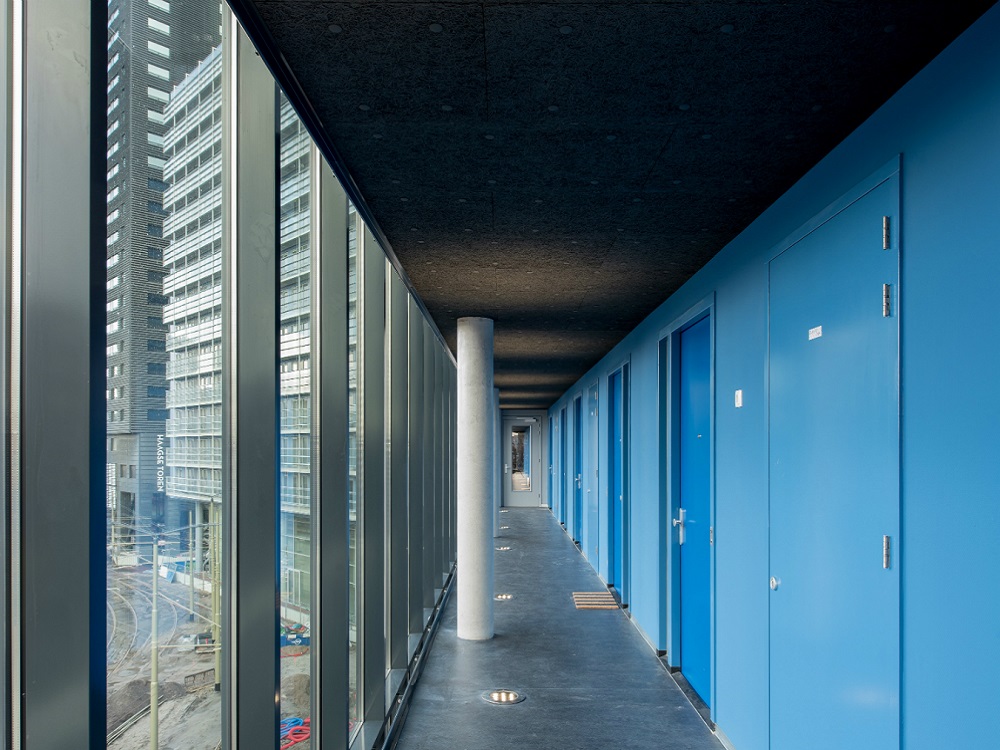

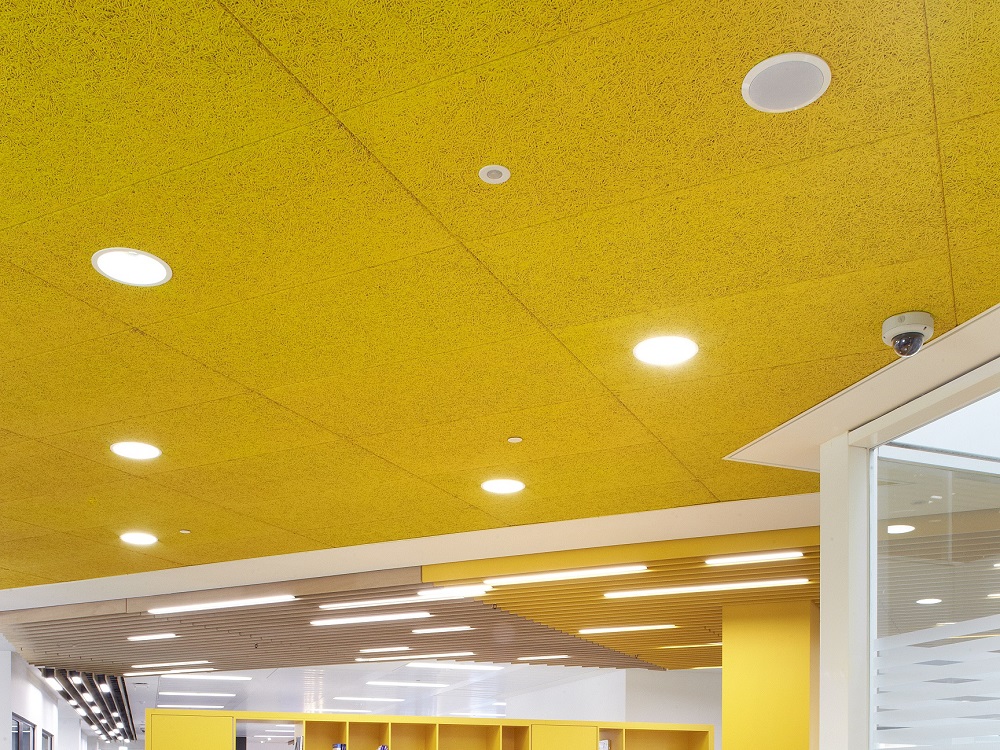

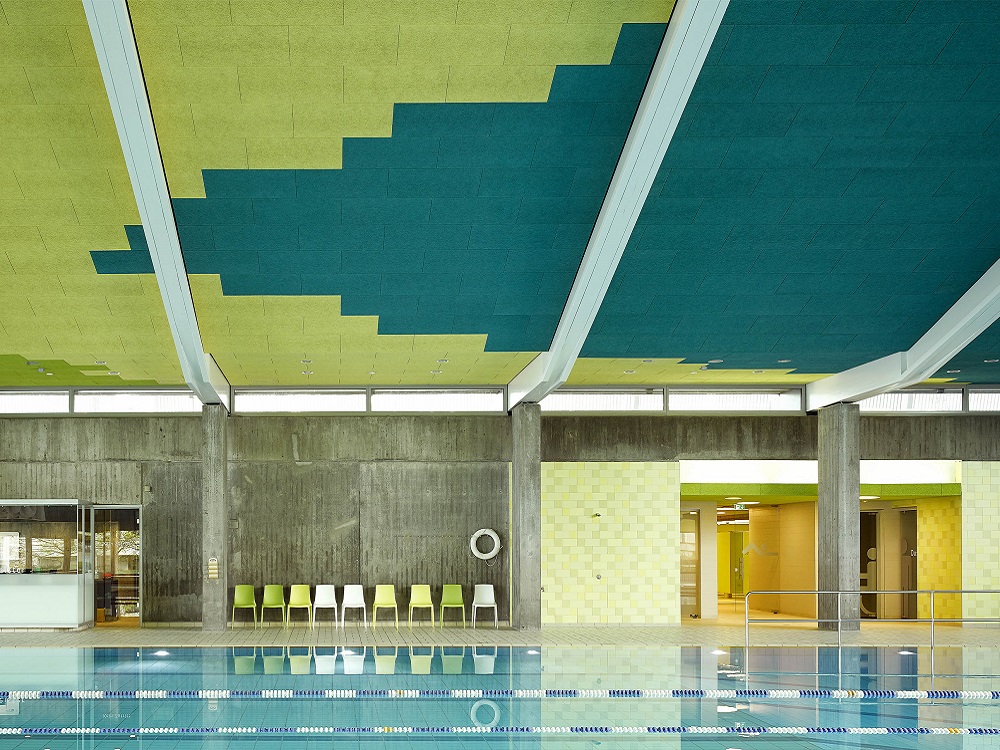

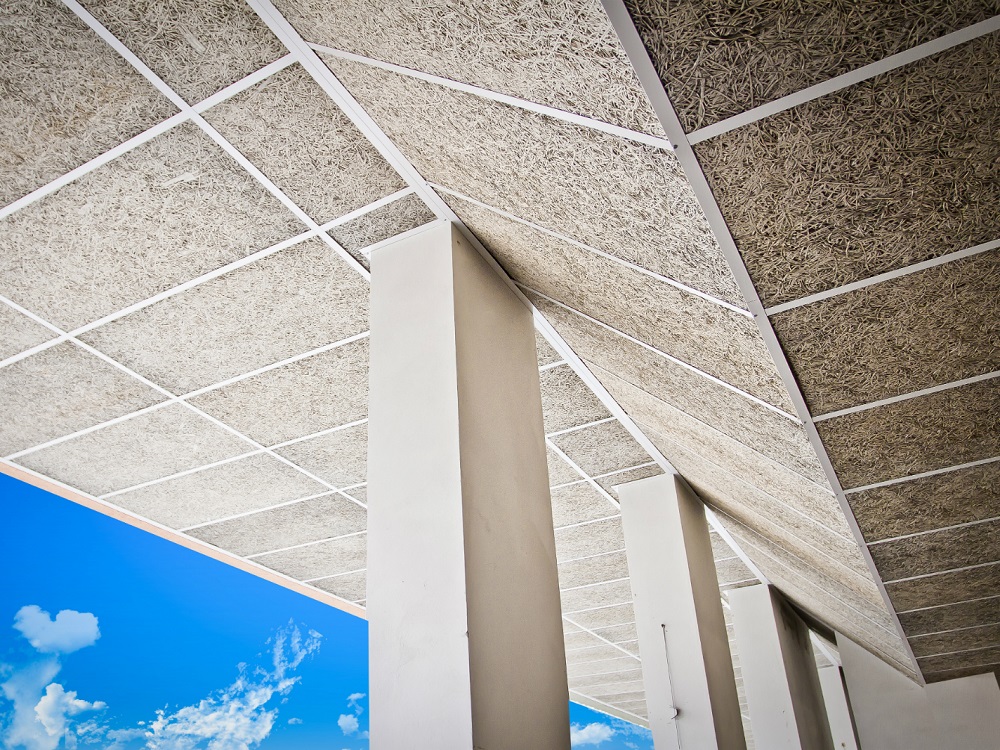

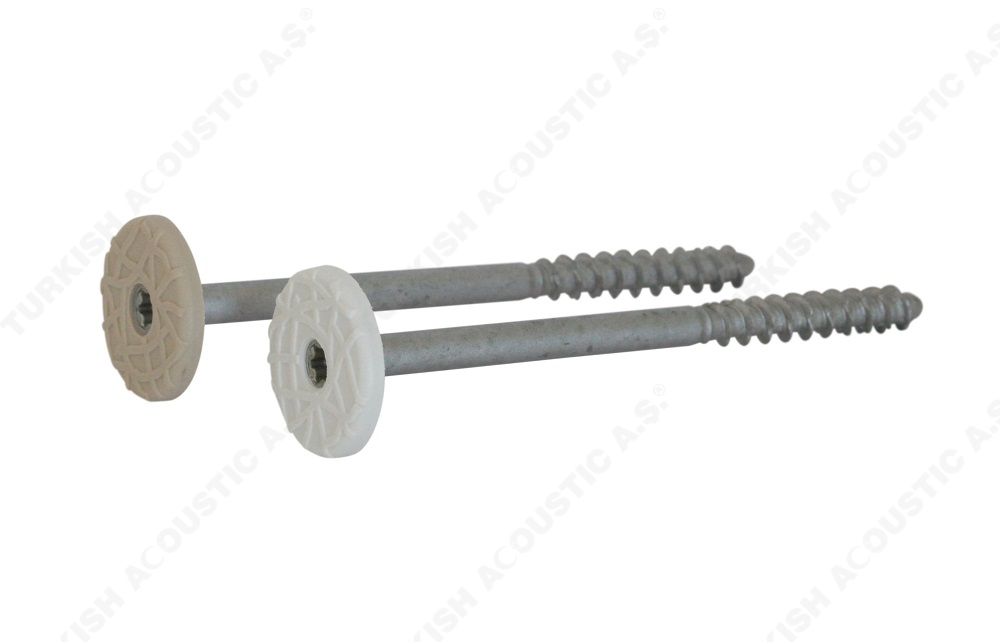

Robust facade insulation systems as Heraklith : The wood wool, the high-tech product of this product, allows for much thicker plastering. Thus, it becomes impact resistant with the outer wall. Heraklith wood wool insulation panel is applied to all suspended ceilings, it can be applied by poking or screwing into the ceiling or wall. Heraclith, which is highly resistant to impact, is the preferred insulation material when it is desired to create an aesthetic appearance and an acoustic environment. A certain usage time is not given for the board formed by using wood fibers and cement at the same time. It has long-term durability.

It saves fuel by storing heat inside the walls. It has an important effect on reducing air pollution. Fire resistance is very high. It prevents the spread of fire for more than three hours. It provides sound insulation (+11dB improvement) thanks to wood wool and relatively thick plaster. A thick plaster consisting of two separate layers as thick and thin plaster is applied. Unlike other sheathing systems, the wall is resistant to impacts. It is light, can be applied in all weather conditions, because it is fast and practical, it saves labor and time.

It prevents the formation of moisture, mold and fungus. It reduces construction costs. Allows less investment in wall materials and heating installation. In addition, there is no need for an exterior plaster and paint. All materials are of high quality and reliable as they are high-tech products of Heraklith. It provides thermal comfort in buildings. It prevents condensation and allows the building to breathe. Since it maintains the temperature inside the buildings for a long time, it prevents disturbing air currents. It provides a warm environment in winter and a cool environment in summer. Since it prevents temperature changes on the walls, it prevents the formation of cracks caused by thermal movements. For all these reasons, it improves your quality of life. Tektalan E-21 is a three-layer composite insulation board with rock wool between magnesite binders. The sound barrier feature of the rock wool in the middle of the plate creates a spring effect. At the same time, the thick plaster on it both absorbs the sound and makes it resistant to impacts. It does not deform, thick plaster can be made. It does not deform, thick plaster can be made. Rock wool heat conduction class 0.040 Polystyrene heat conduction class 0.040 Fire resistance class F30 (for 50 mm thickness) It has breathing feature It has sound absorbing feature It improves the sound insulation of the building elements it is used with. It does not contain animal and plant pests, it is antibacterial. Suitable for concrete and mineral plasters. It can be easily cut and applied. In addition to sound insulation, heraklite wood wool insulation material also provides heat insulation. Heraclite wood wool, which can be used as sound or heat insulation, provides long-term protection of the buildings to which it is applied. The fact that it is produced from protective materials ensures that it is not affected by impacts. Thanks to its high resistance to fire, it prevents the flames from enveloping the entire building in a short time.

TECHNICAL SPECIFICATIONS :

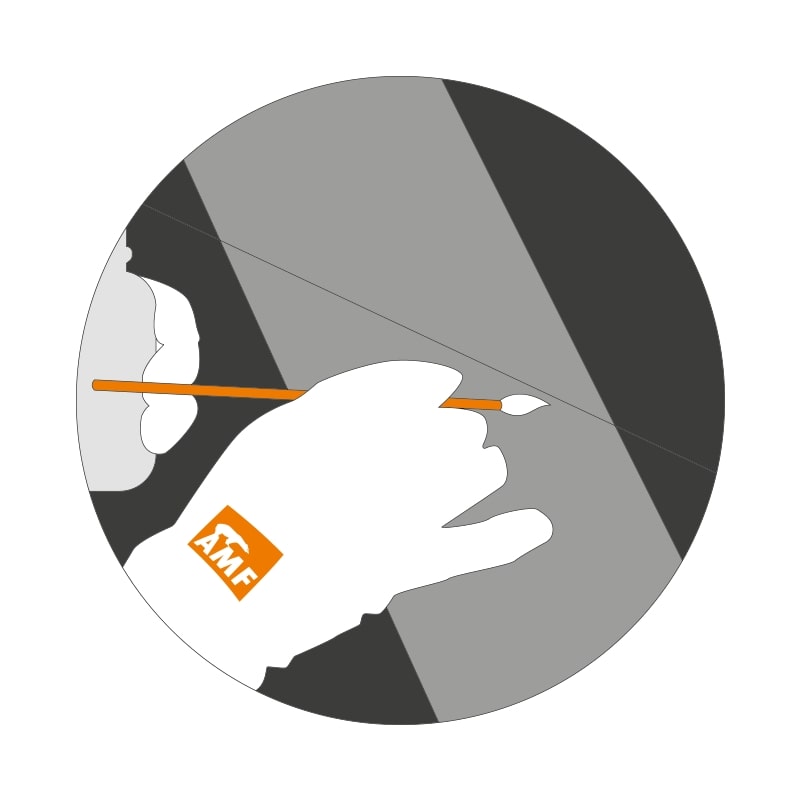

It should not be affected by water and humidity. They should be antibacterial. They should not contain any additional substances harmful to human health and formaldehyde. Each plate size should be 1200z600mm. According to the detail requirements of the project, 600x600 slabs should be used in the areas requested by the administration. There will be no change in the dimensions except for slight shifts due to the biological and organic components of the wood. The length should not exceed 3 mm, the width should not exceed 2 mm, and the thickness should not exceed 1 mm. The sound absorption coefficient of the plates should provide 0.90. The coefficients must be measured according to international standards. Measurements and results should be given to the administration. Acoustic Heraklith panel boards should be left as natural homogeneous and should be painted with a paint that will suit the structure of the material, in the selected colors, in the places indicated by the administration, in accordance with the request of the administration.

TEKALAN E-21

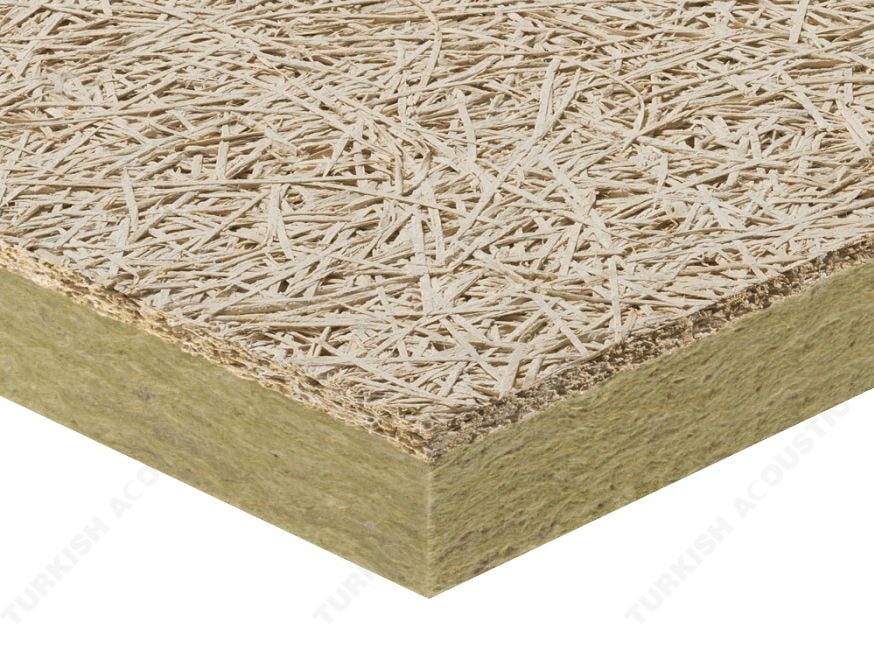

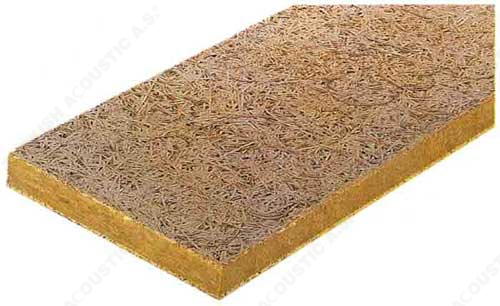

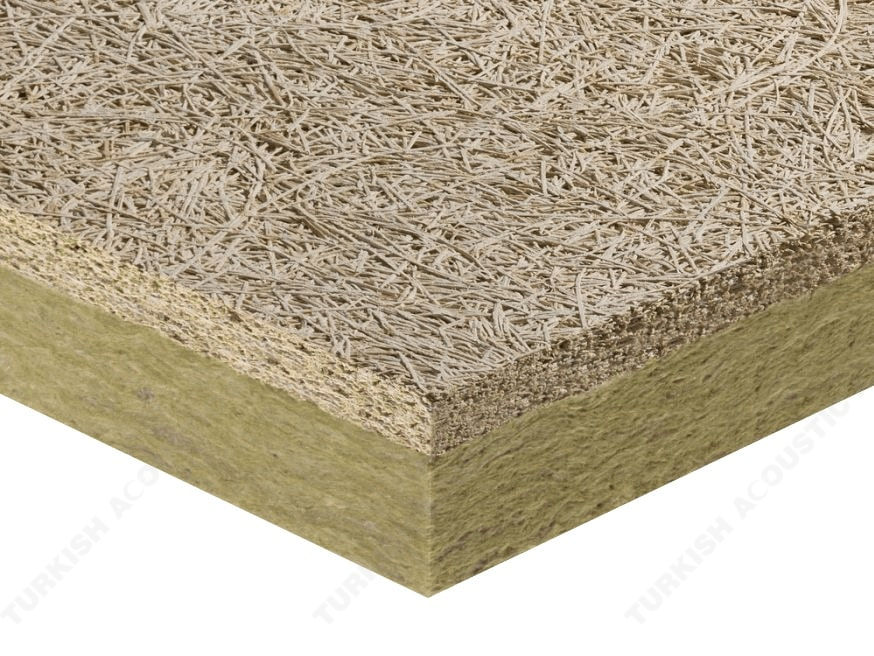

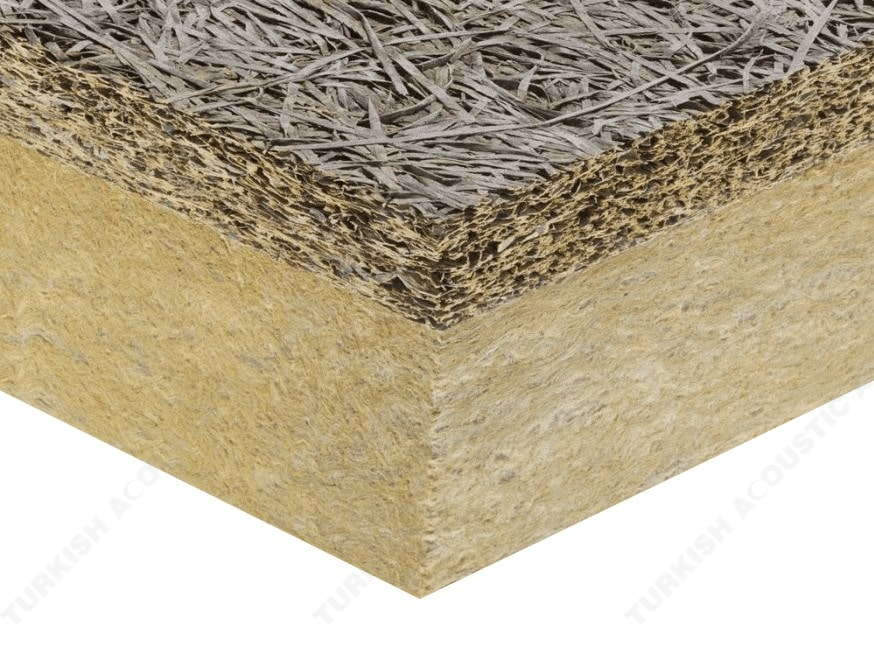

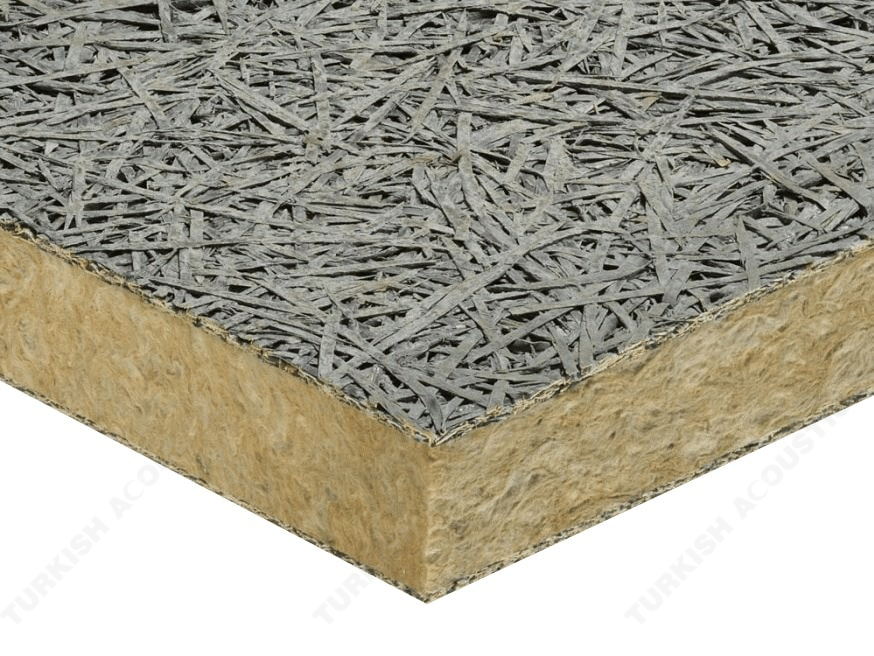

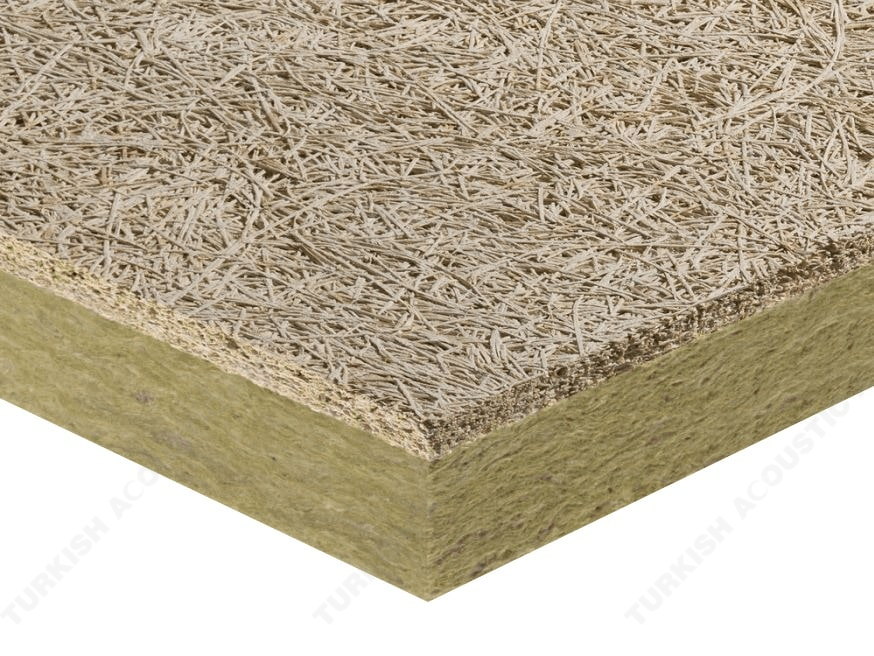

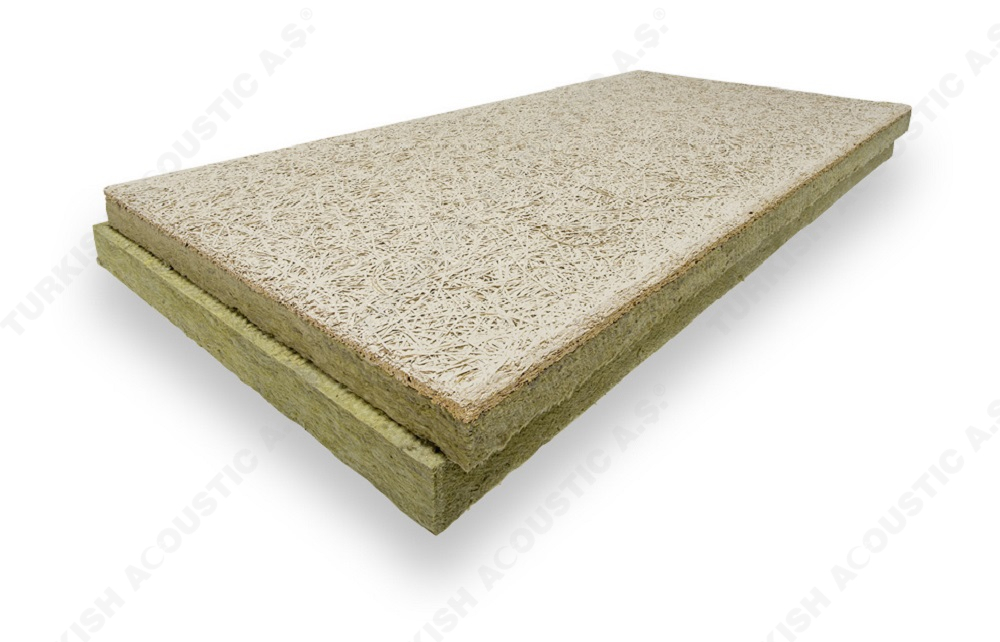

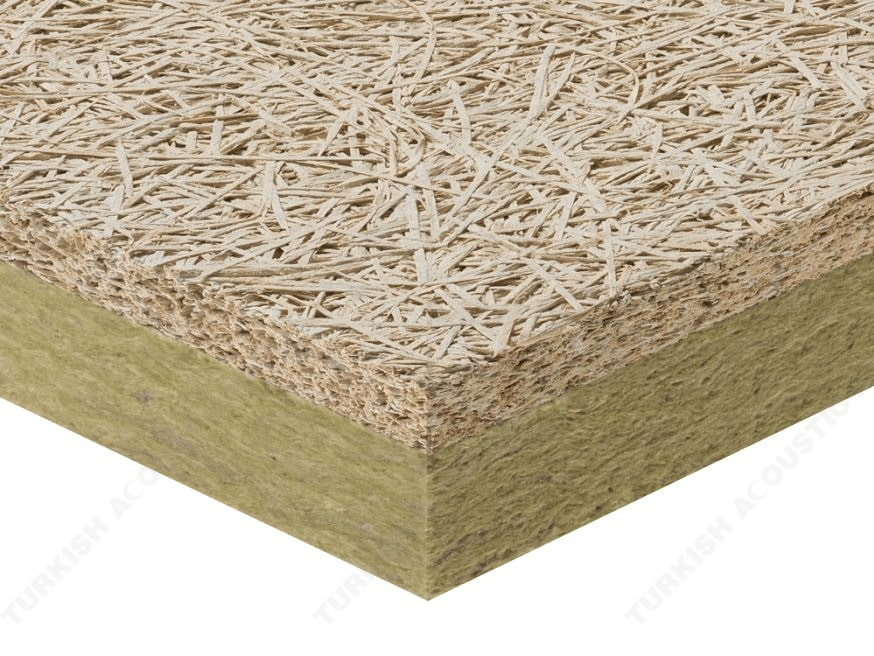

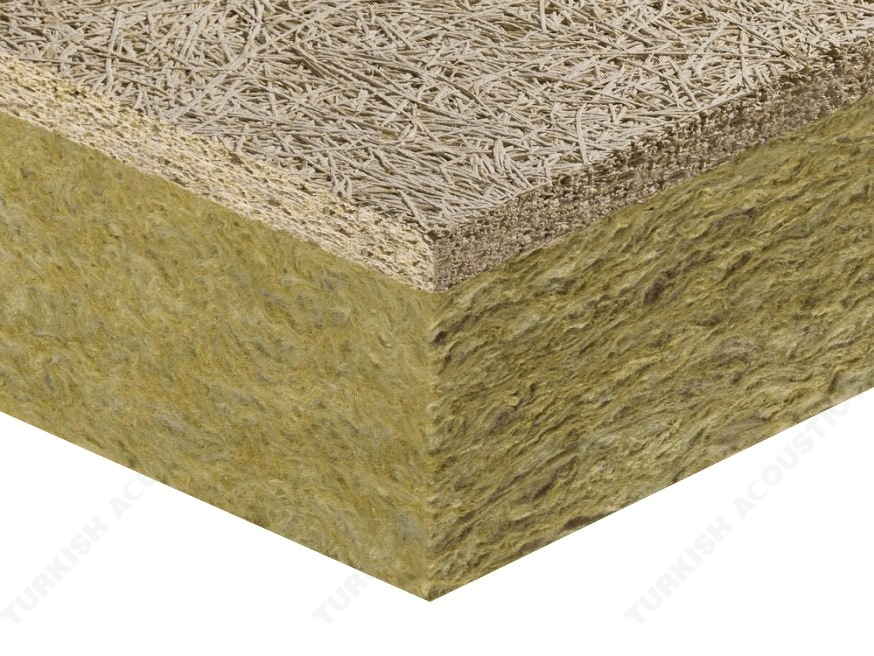

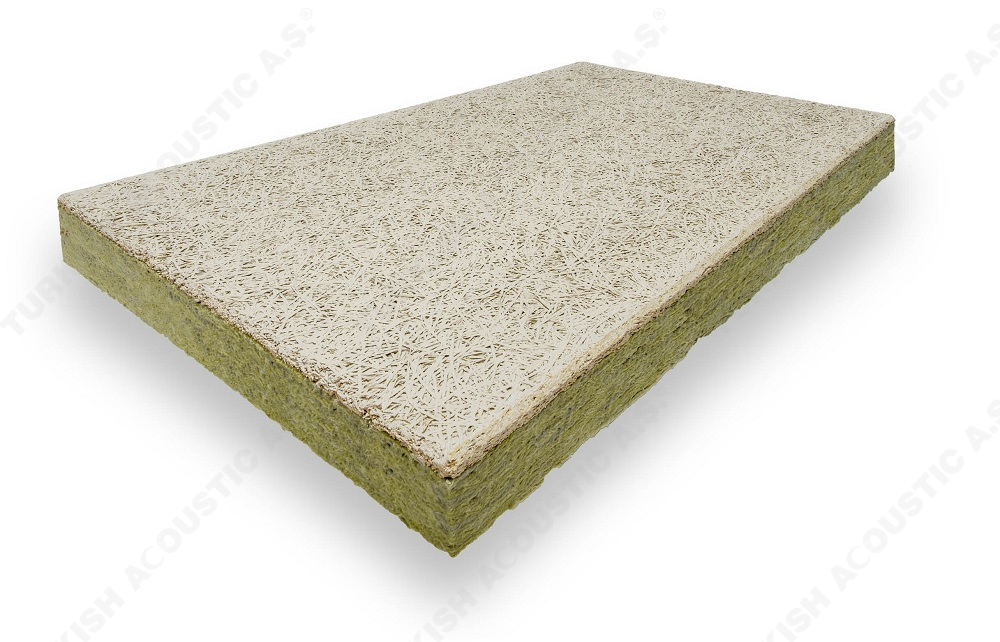

Tektalan E-21 is a three-layer composite insulation board with rock wool between magnesite binders. The sound barrier feature of the rock wool in the middle of the plate creates a spring effect. At the same time, the thick plaster on it both absorbs the sound and makes it resistant to impacts.
TECHNICAL SPECIFICATIONS
Plate Thickness (mm)	35	50	75	100
Katman Kalınlığı (mm)	5/25/5	5/40/5	5/65/5	5/90/5
Weight (kg/m²)	10,5	13,0	17,5	21,0
Heat Transfer Resistance-R- (m² K/W)	0,70	1,10	1,80	2,50
Diffusion Resistance (µ)	5	5	4	4
Fire Resistance Class (plate + plaster)	F30	F60	F90	F90

HERAKTA M-3

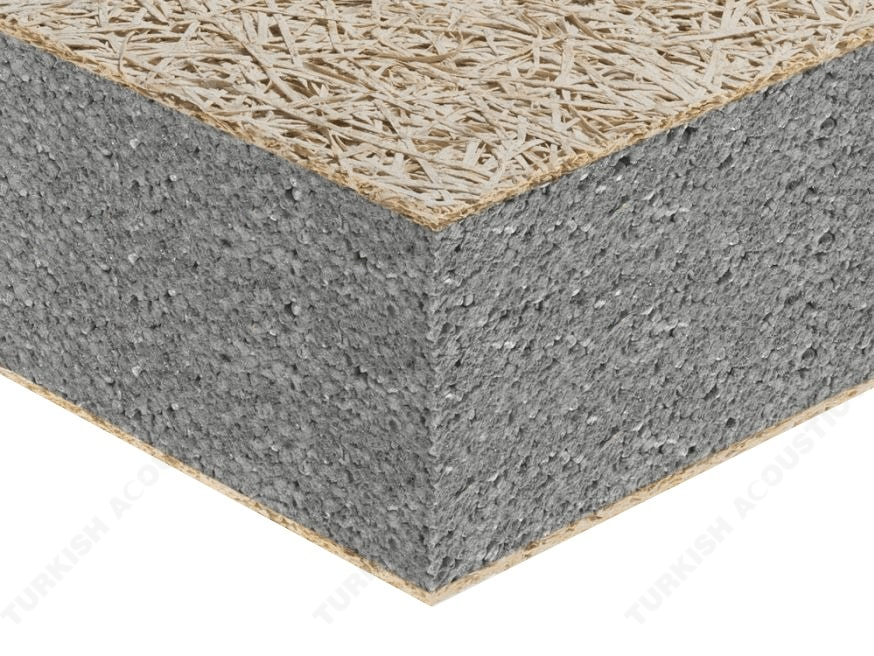

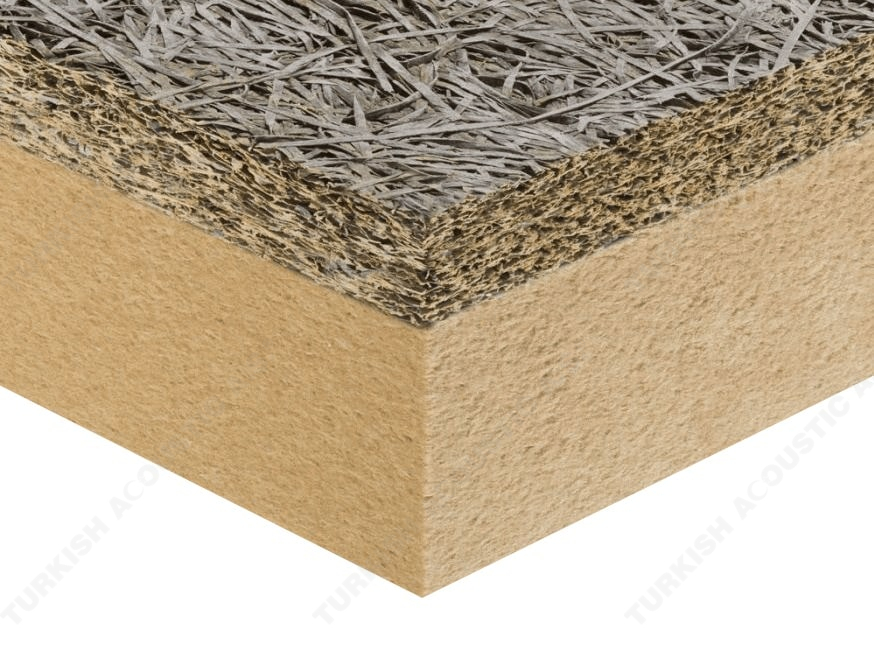

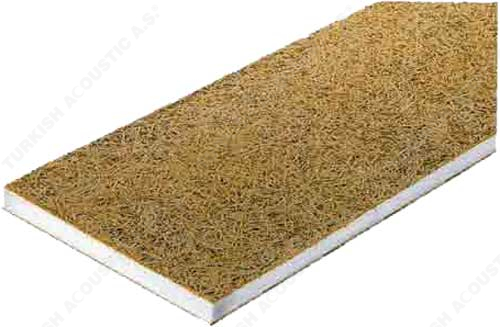

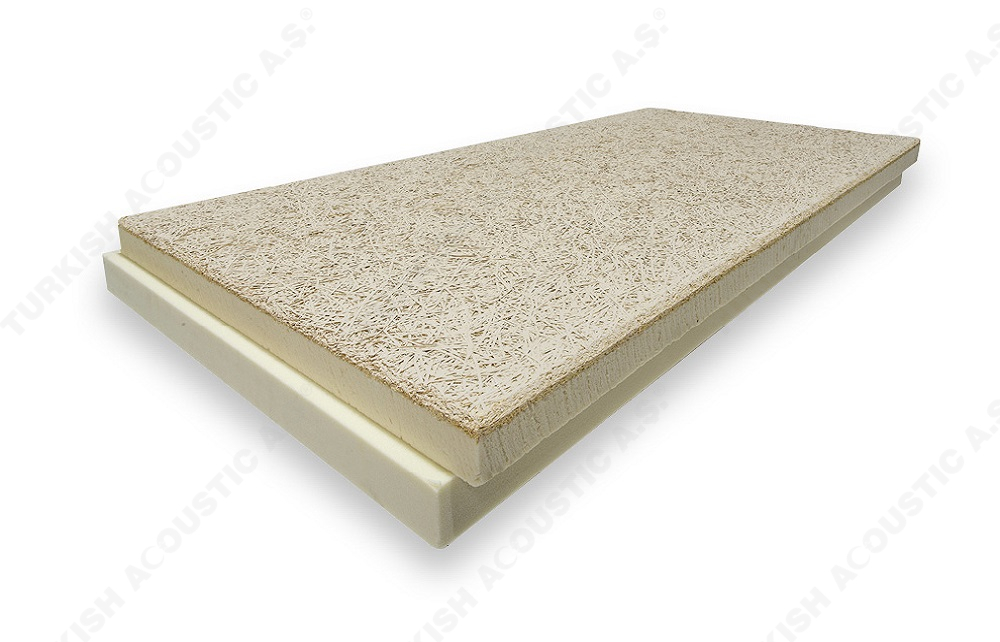

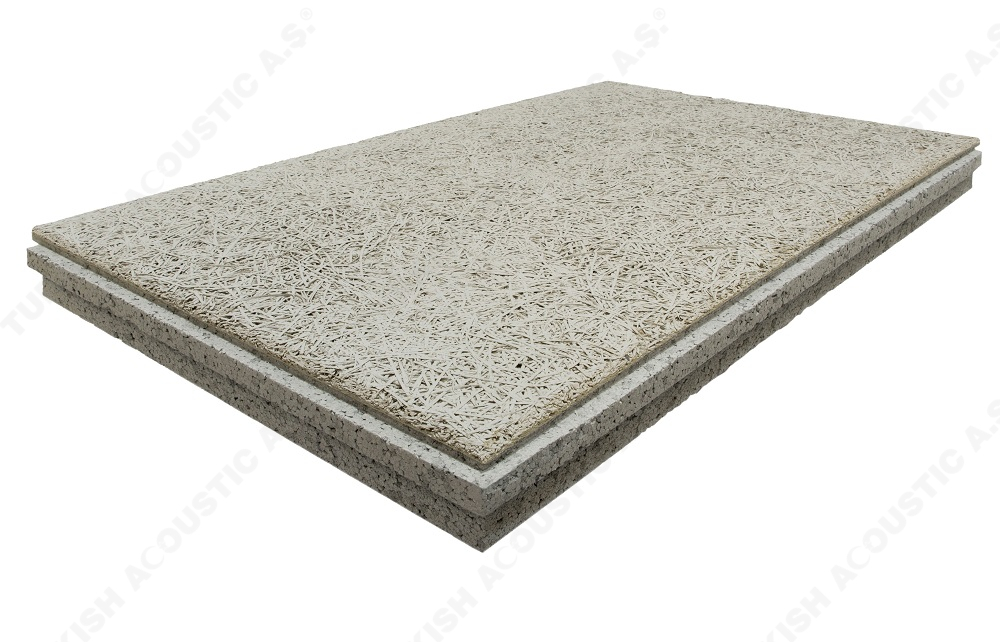

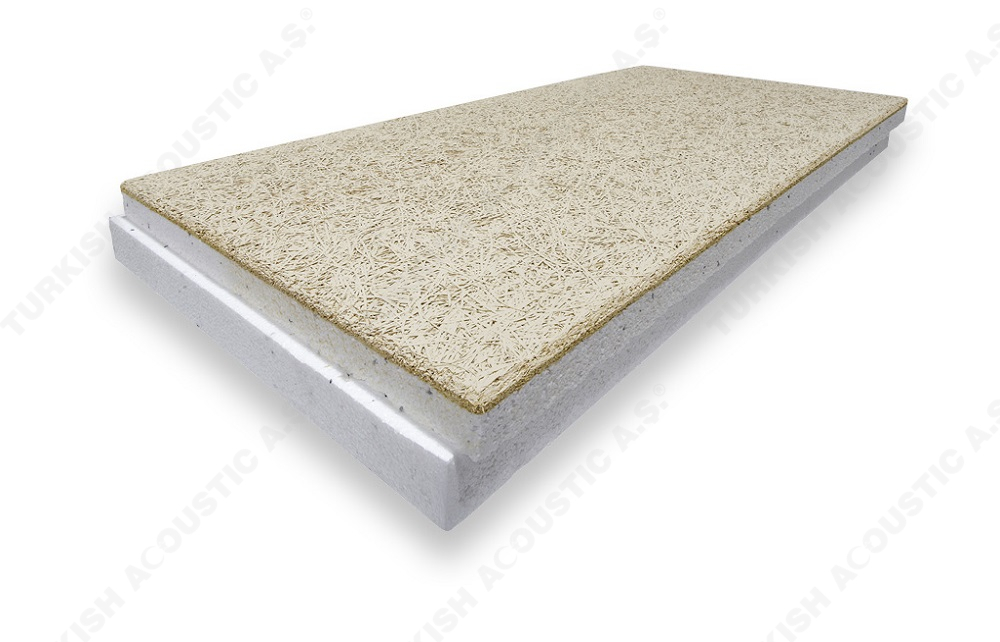

Herakta M-3 is a three-layer composite insulation board combined with magnesite binder and Heraklith Expended Polystyrene. It is used in ceilings, columns and places that can create a thermal bridge in buildings, as well as the exterior of buildings.
TECHNICAL SPECIFICATIONS
Plate Thickness (mm)	35	50	75	100
Katman Kalınlığı (mm)	5/25/5	5/40/5	5/65/5	5/90/5
Weight (kg/m²)	7,5	8,0	8,5	9,0
Heat Transfer Resistance-R- (m² K/W)	0,70	1,10	1,80	2,50
Diffusion Resistance (µ)	50	50	50	50

HERAKLİTH CF
TECHNICAL SPECIFICATIONS
Plate Thickness (mm)	25	35	50
Weight (kg/m²)	10,0	12,5	16,5
Heat Transfer Resistance-R- (m² K/W)	0,28	0,39	0,56
Diffusion Resistance (µ)	6	5	4

HERAKLİTH EPV
TECHNICAL SPECIFICATIONS
Plate Thickness (mm)	25	35	50
Weight (kg/m²)	14,0	17,5	22,5
Heat Transfer Resistance-R- (m² K/W)	0,28	0,39	0,56
Diffusion Resistance (µ)	6	5	5
Fire Resistance Class (plate + plaster)		F30	F30

Our products have flameproof and nonflammability certificates and nonflammable/flameproof Firex; in nonflammability BS476: class 0 and Unı 9175:2008 M1 documents in European norms.  They are anti-bacterial thanks to their dead cell structure and do not produce any mycose and bacteria.

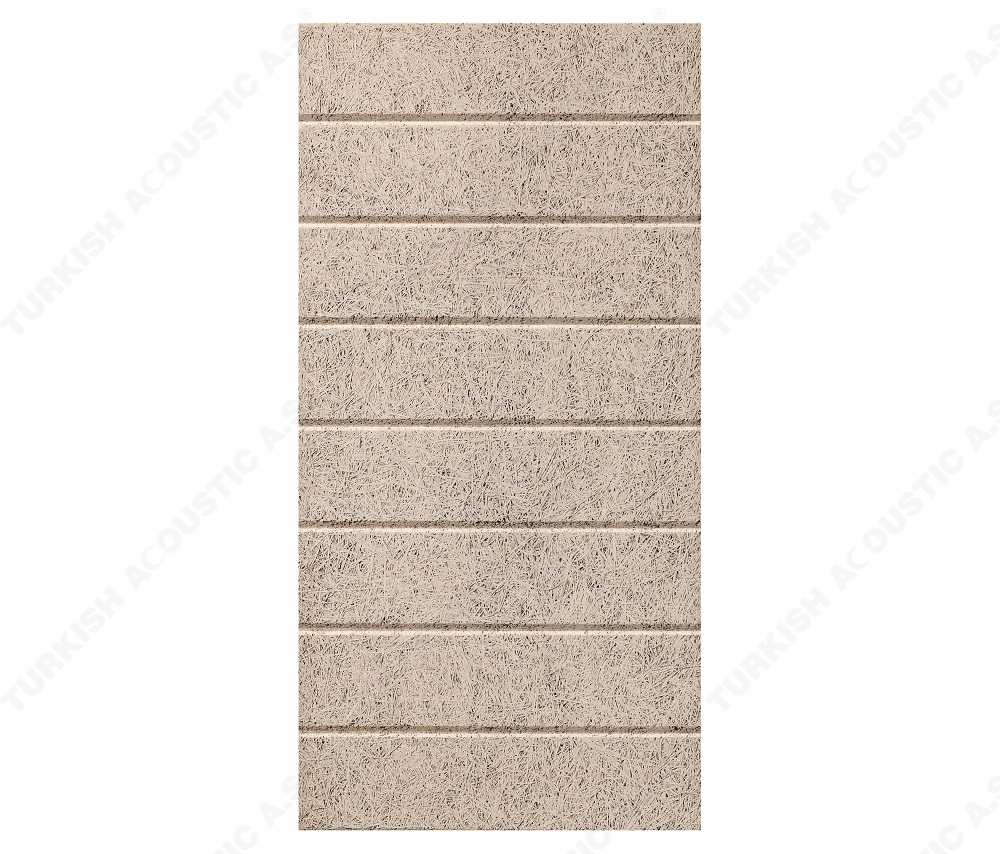

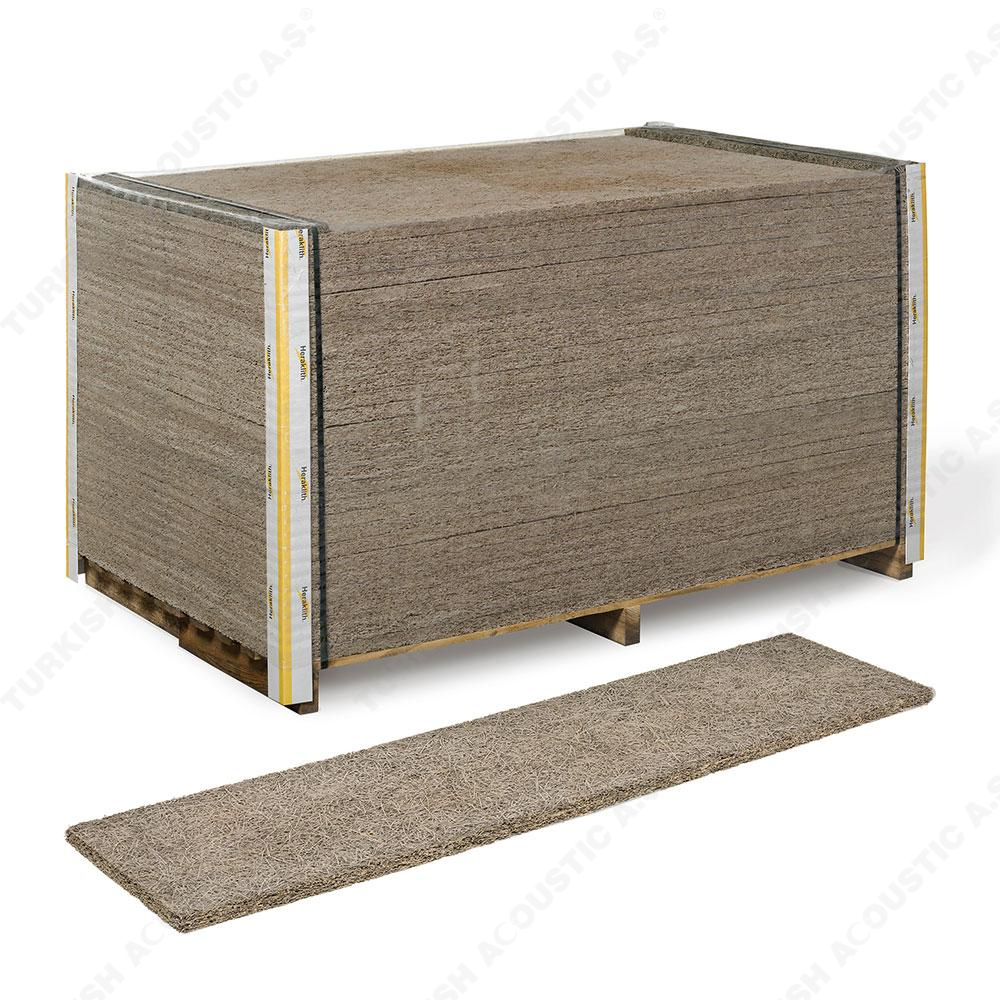

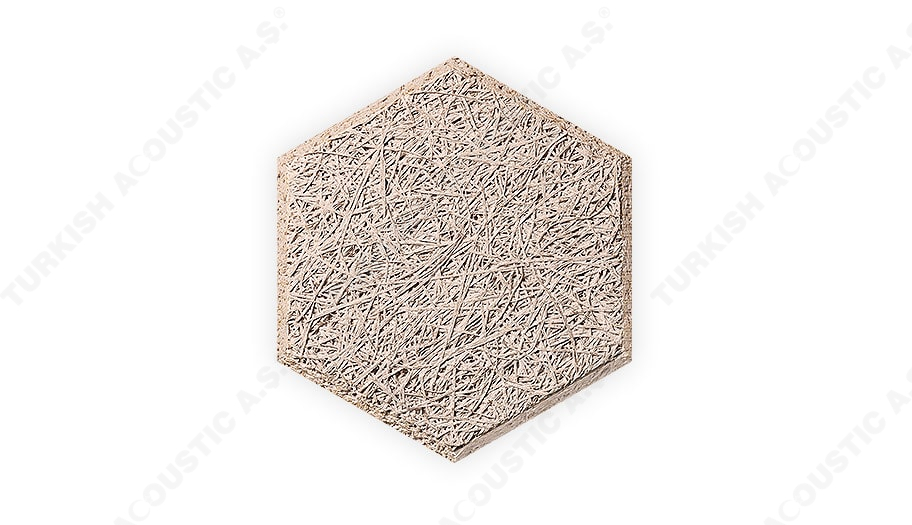

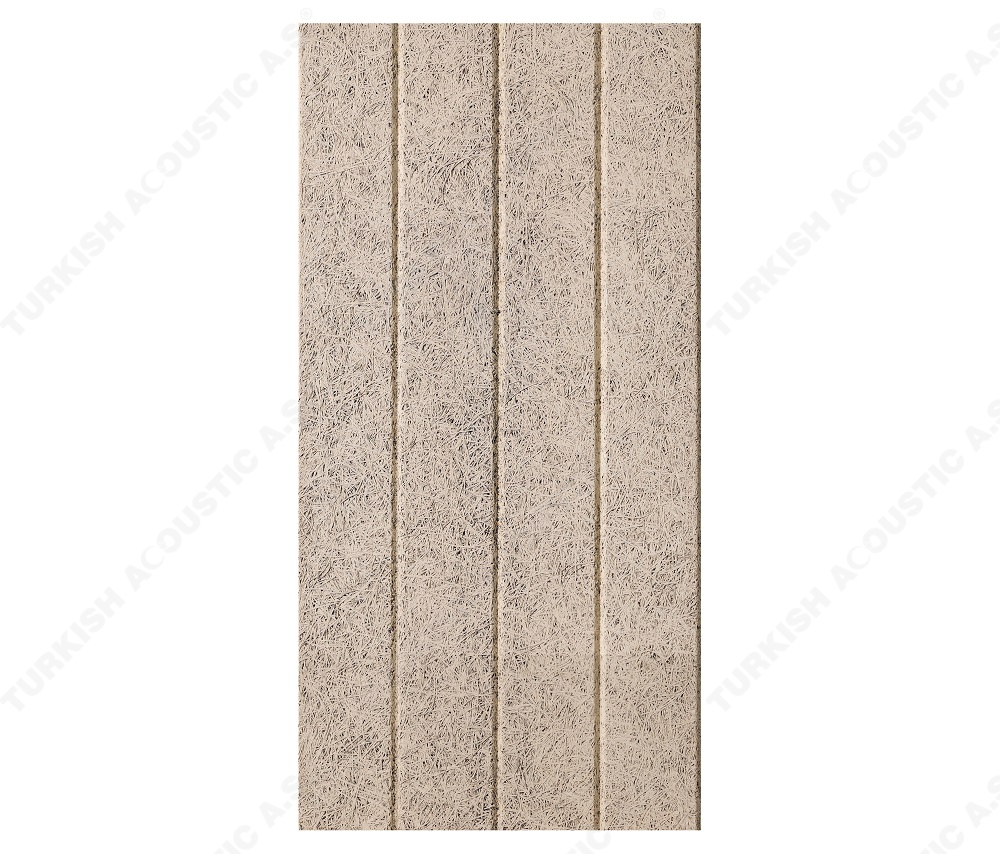

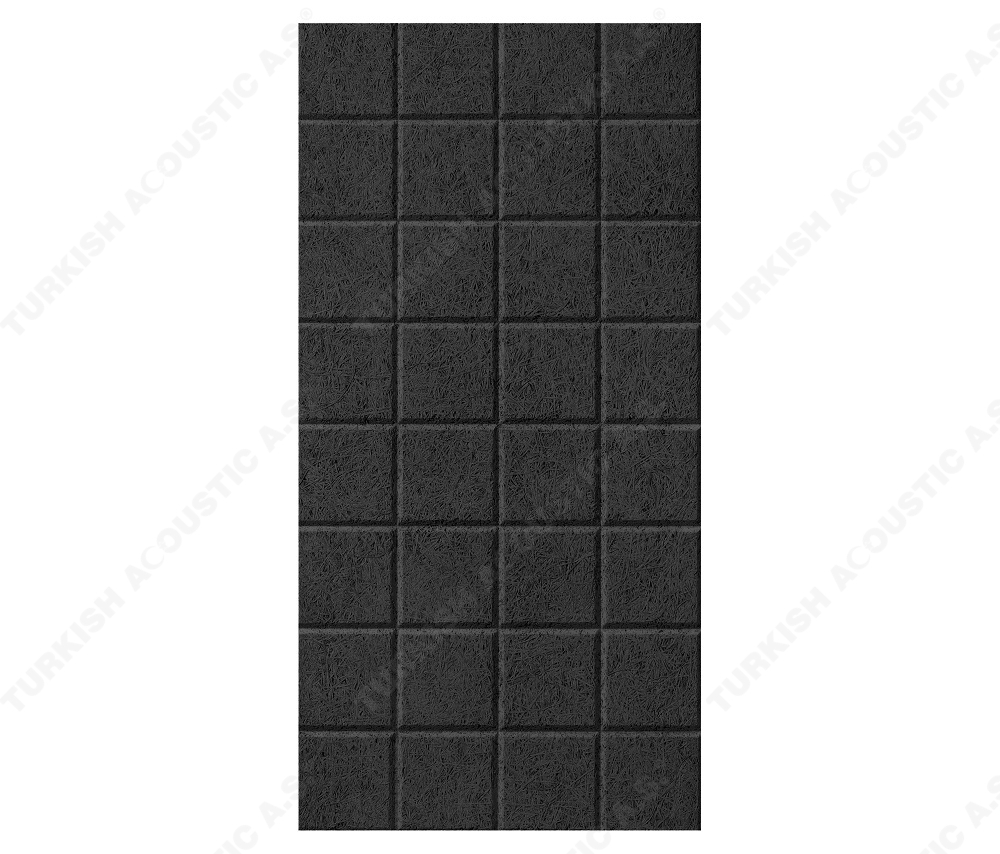

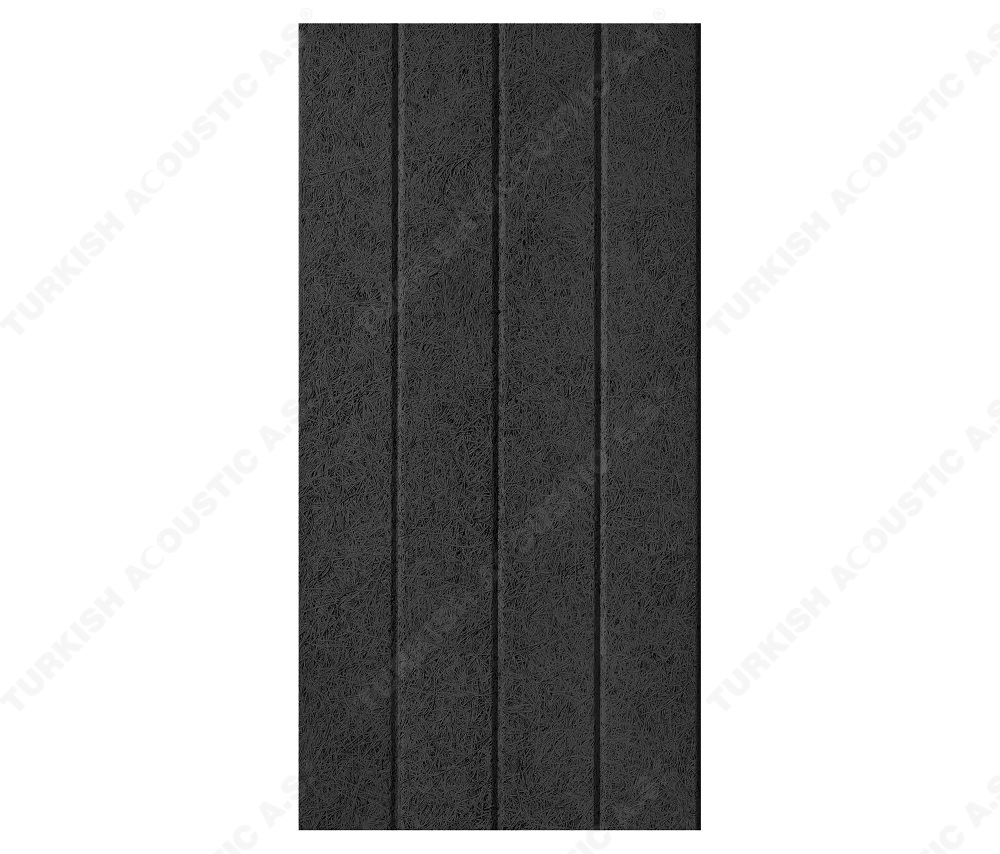

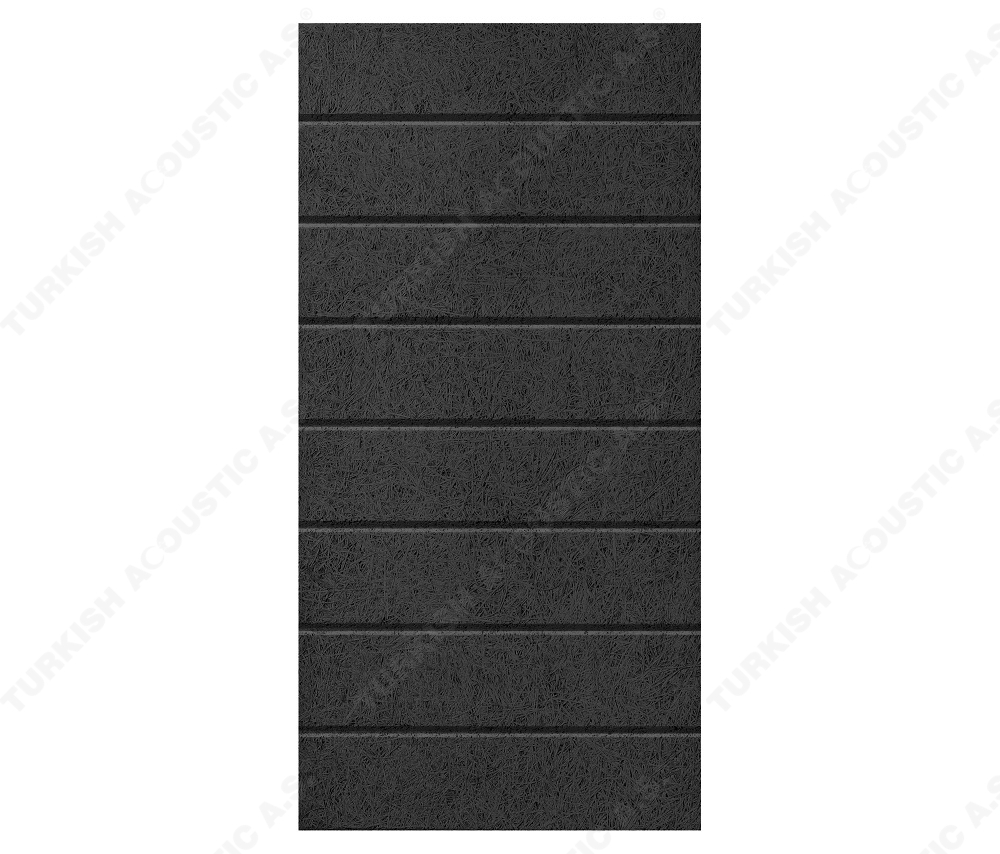

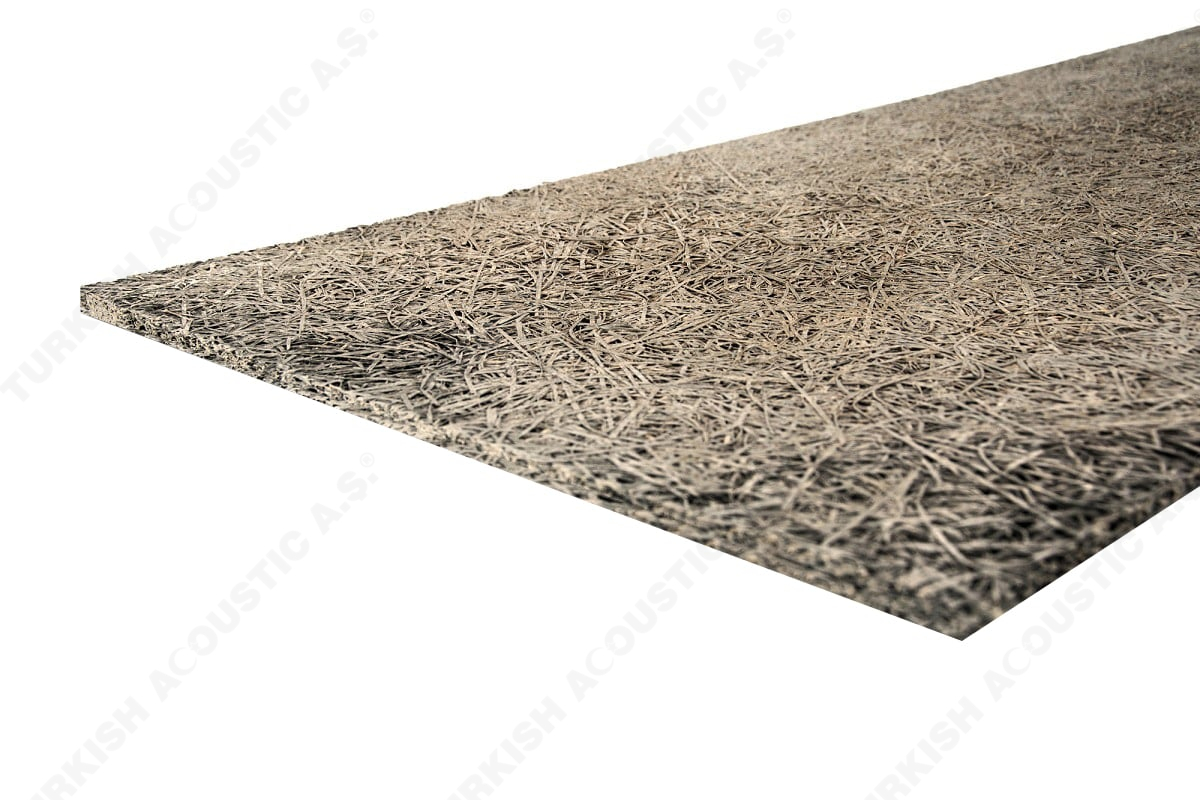

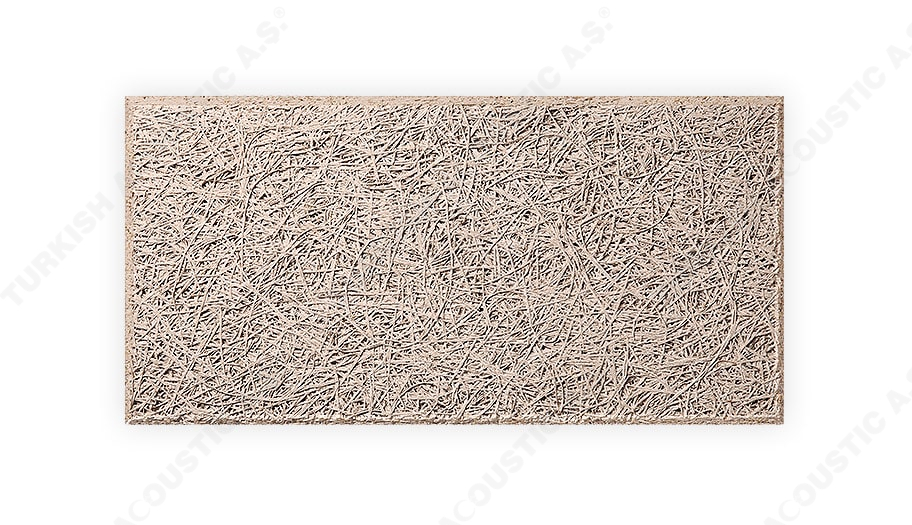

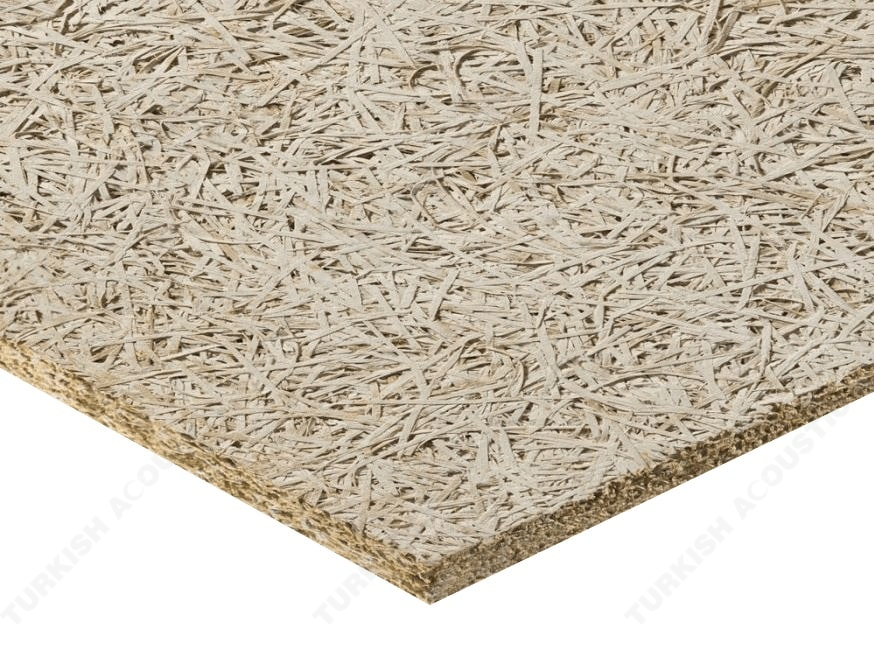

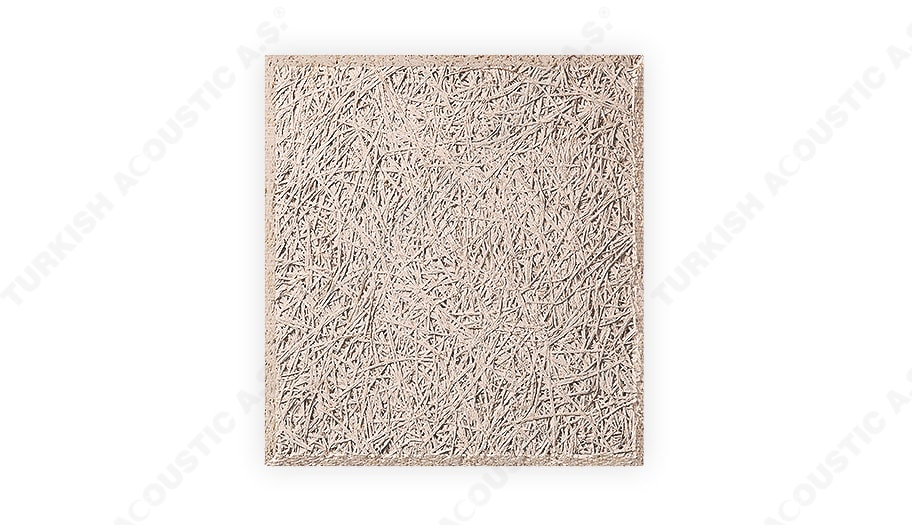

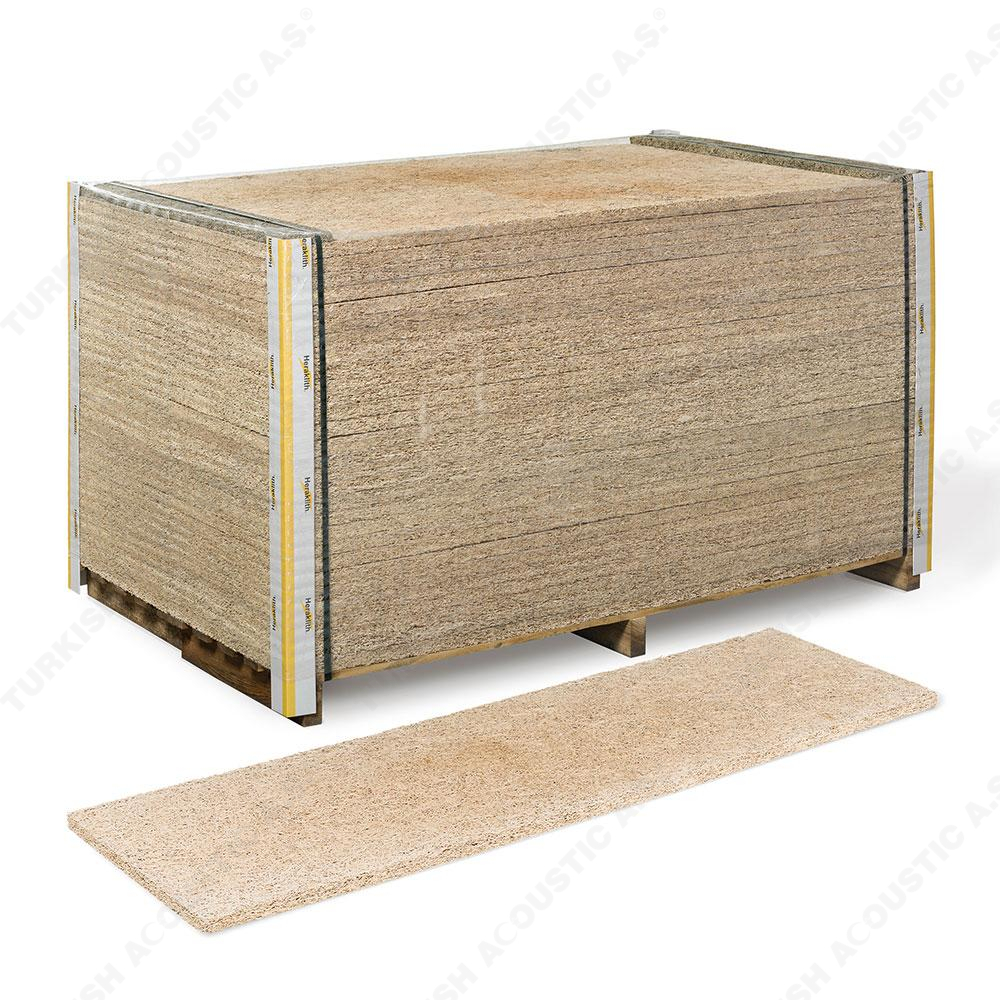

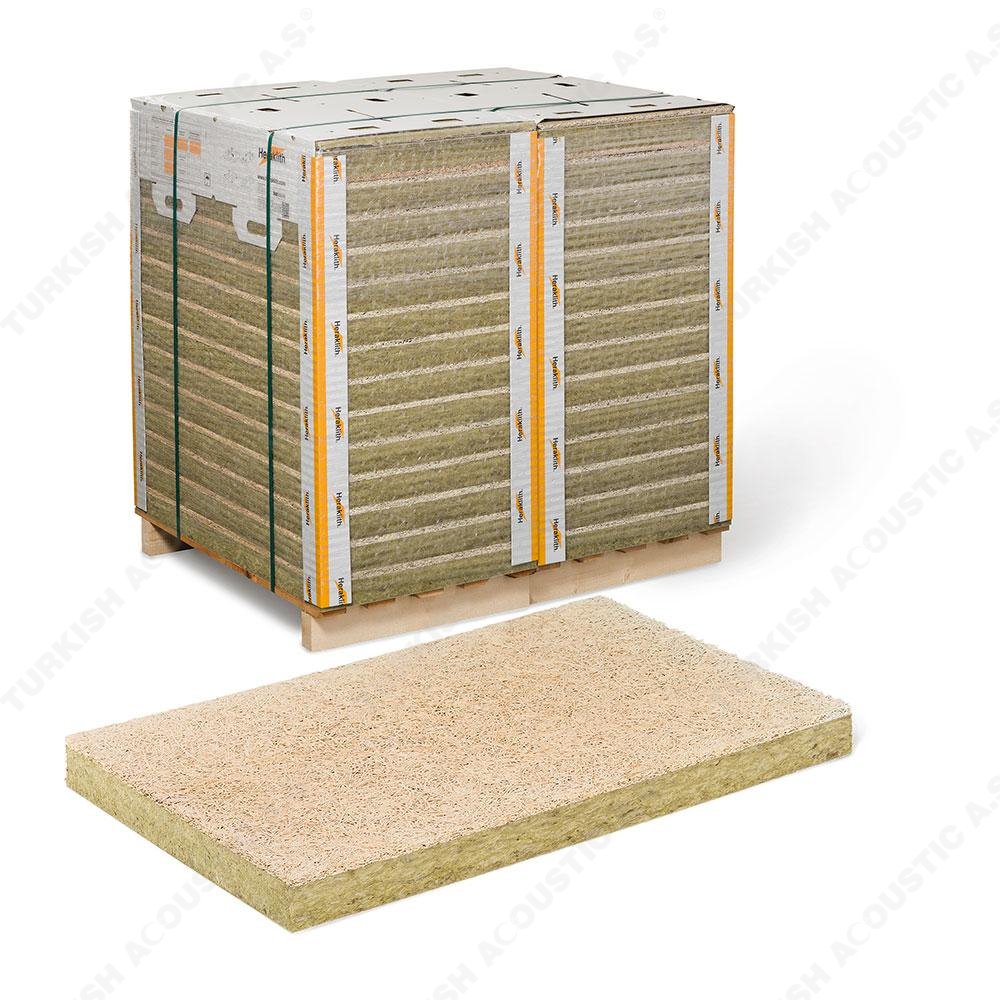

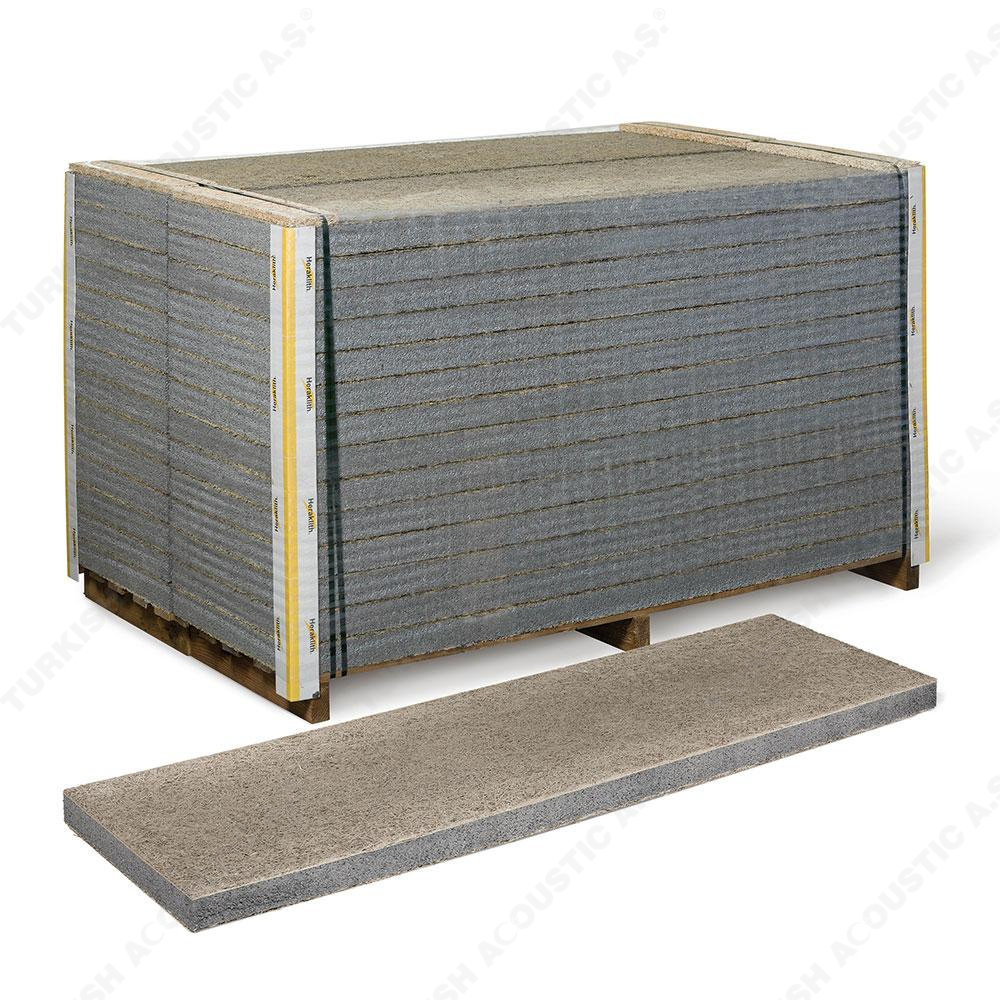

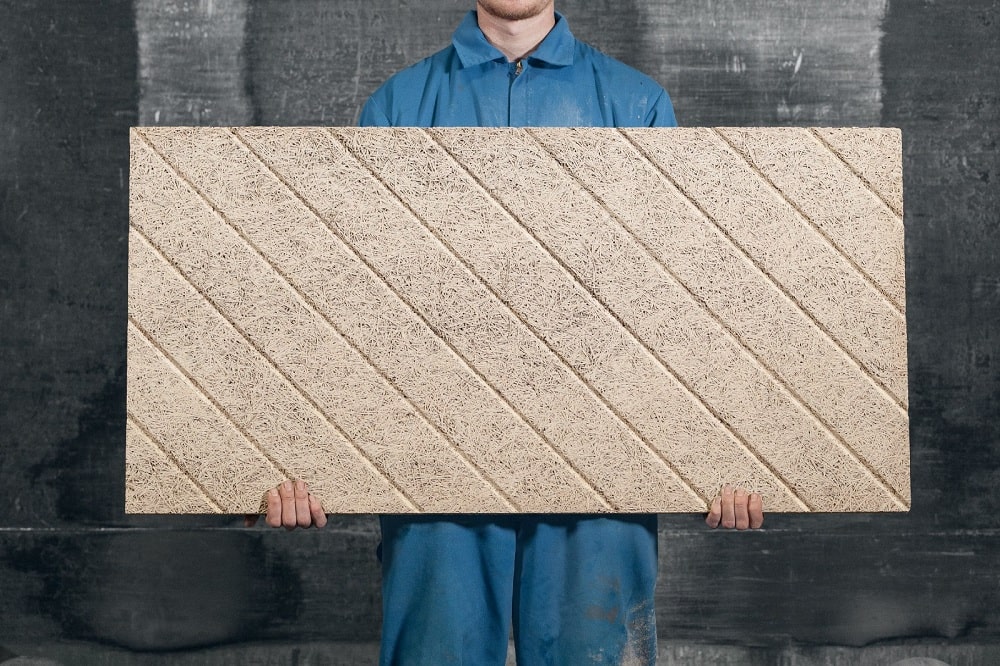

Heraklith panels are 60 cm x 120 cm and there are 10 m² of products in their packages. It is sold in retail and wholesale as 20 mm and 30 mm as standard, it can be produced in different thicknesses and sizes as a special production if you wish. Please contact our technical office for detailed information.
